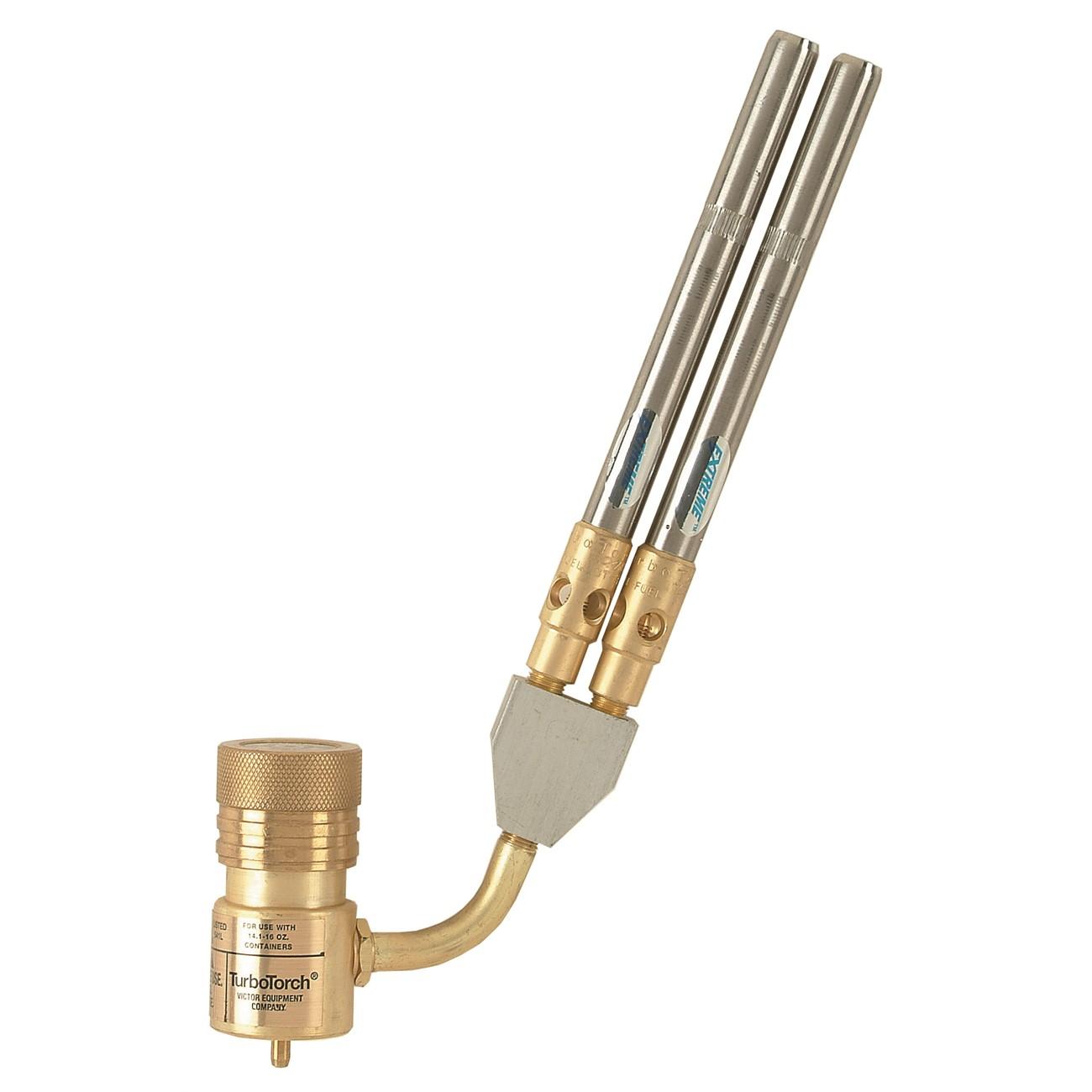

Turbo Torch 0386-1295 TX-504 Hand Torch Kit Hvac

Product Description

The TURBO TORCH 0386-1295 is a TX-504 series hand torch kit built around Extreme Swirl Technology, a swirl combustion design that concentrates heat more efficiently than standard hand torches. The result is faster brazing times and lower gas consumption per joint. The kit ships complete with the TX-504 hand torch, an adapter (0386-0508), a TS-12 hose, and an STK-R regulator, giving a technician everything needed to get on the work surface quickly. HVAC technicians and light fabricators handling high-capacity brazing applications are the primary users of this kit.

The TX-504 series is designed for HVAC service and high-capacity brazing tasks where heat must be delivered quickly to minimize joint time and gas use. The self-lighting trigger eliminates the need for a separate striker, and the quick-disconnect coupling between the handle and tips allows tip changes without breaking down the entire assembly. Suitable applications include refrigerant line brazing, copper tube joining, and light fabrication work. The kit configuration is aimed at professional service technicians who need a ready-to-run torch setup on arrival at a job site.

Key Features

• Extreme Swirl Technology generates higher heat output than conventional hand torches for faster brazing
• Lower gas consumption per joint compared to standard swirl-free designs
• Self-lighting trigger built into the handle for ignition without a separate striker
• Quick-disconnect coupling between handle and tips for fast tip swaps in the field
• Complete kit includes TX-504 torch, 0386-0508 adapter, TS-12 hose, and STK-R regulator
• Rated for HVAC and high-capacity brazing applications

Compatibility

The TX-504 series is suited for HVAC refrigerant line brazing and high-capacity torch applications. No specific equipment model compatibility data was provided by the manufacturer for this listing.

Installation Notes

Installation and operation of this torch kit should be performed by qualified HVAC technicians or trained trade professionals familiar with fuel-gas equipment. Verify all hose and regulator connections are leak-free before igniting the torch. Keep the work area clear of flammable materials and follow applicable safety codes for fuel-gas equipment use. Inspect the quick-disconnect coupling and hose for wear or damage before each use.

Technical Specifications

• Weight: 4.3 pounds
• Length: 12.8 inches
• Width: 4.8 inches
• Height: 2.1 inches
• Unit of Measure: Each
• UPC: 716352497299

Standard Information

• Brand: TURBO TORCH
• Manufacturer Part Number: 0386-1295
