Turbo Torch 0386-0868 Air Acetylene Torch Kit

Product Description

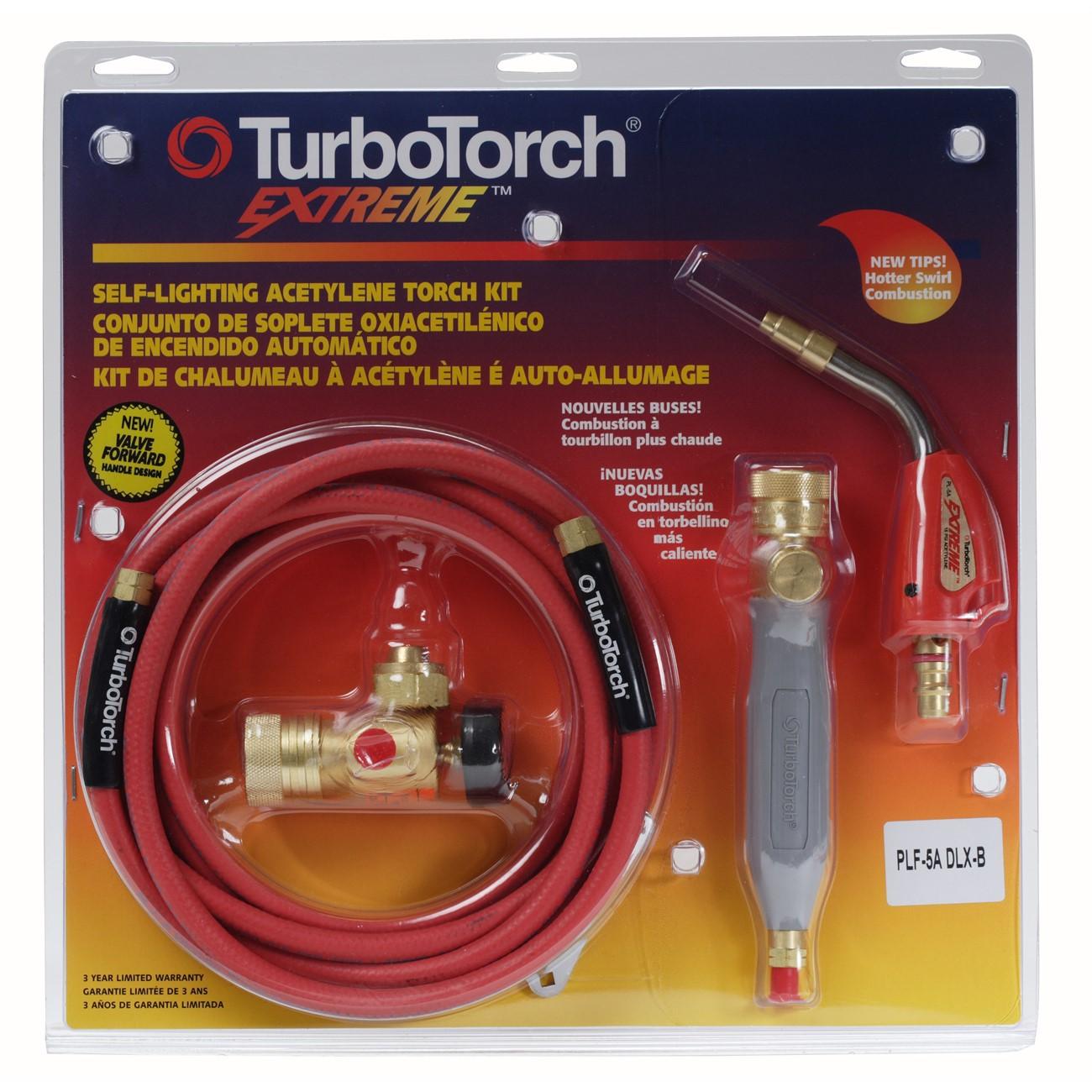

The TURBO TORCH 0386-0868 is a self-lighting air acetylene torch kit designed for brazing, soldering, and light fabrication work in HVAC and plumbing applications. Built around EXTREME Swirl Technology, the kit generates high heat output rapidly, which reduces brazing time and overall fuel consumption compared to standard air acetylene setups. The valve-forward configuration gives the technician direct control at the tip end of the handle. Quick-disconnect handles and tips speed up swaps in the field, and replaceable tips extend the life of the kit. Color-coded O-rings allow fast gas identification, reducing the chance of connection errors on the job.

This torch kit is suited for residential and light commercial HVAC work, plumbing brazing, and light fabrication tasks. The valve-forward design is preferred by many HVAC technicians and plumbers who want throttle control closer to the flame. The complete kit ships ready to connect to a standard B tank, making it practical for van stock or shop use. It also sees use in hobbyist and light-fabrication settings where an air acetylene heat source is appropriate.

Key Features

• EXTREME Swirl Technology for fast, high-intensity heat output with reduced fuel consumption
• Valve-forward configuration for control near the tip
• Quick-disconnect handle and tip system for fast field swaps
• Replaceable tips to extend kit service life
• Color-coded O-rings for quick gas-type identification
• Kit includes AR-B (CGA 520) Regulator, PLF-A5 Handle, AH-12 Hose, PL-12A Tip, B Tank Connections, and Instruction Manual

Compatibility

Designed for use with B-tank air acetylene cylinder connections (CGA 520); includes gauge guards and cylinder wrench for standard B-tank setups.

Installation Notes

Installation and operation of air acetylene torch equipment should be performed by qualified HVAC technicians, plumbers, or trained fabricators familiar with fuel-gas safety procedures. Always close the cylinder valve and relieve hose pressure before connecting or disconnecting fittings. Inspect the hose, regulator, and tip for damage before each use, and never use the torch in an unventilated space. Applicable work should conform to local fire codes and industry safety standards for fuel-gas equipment.

Technical Specifications

• Configuration: Valve Forward
• Gas Type: Air Acetylene
• Regulator Included: AR-B (CGA 520)
• Handle Included: PLF-A5
• Hose Included: AH-12
• Tip Included: PL-12A
• Tank Connection: B Tank (CGA 520)
• Length: 13.9 inches
• Width: 14.5 inches
• Height: 2.8 inches
• Weight: 4.2 pounds
• UPC: 716352214735

Standard Information

• Brand: TURBO TORCH
• Manufacturer Part Number: 0386-0868
