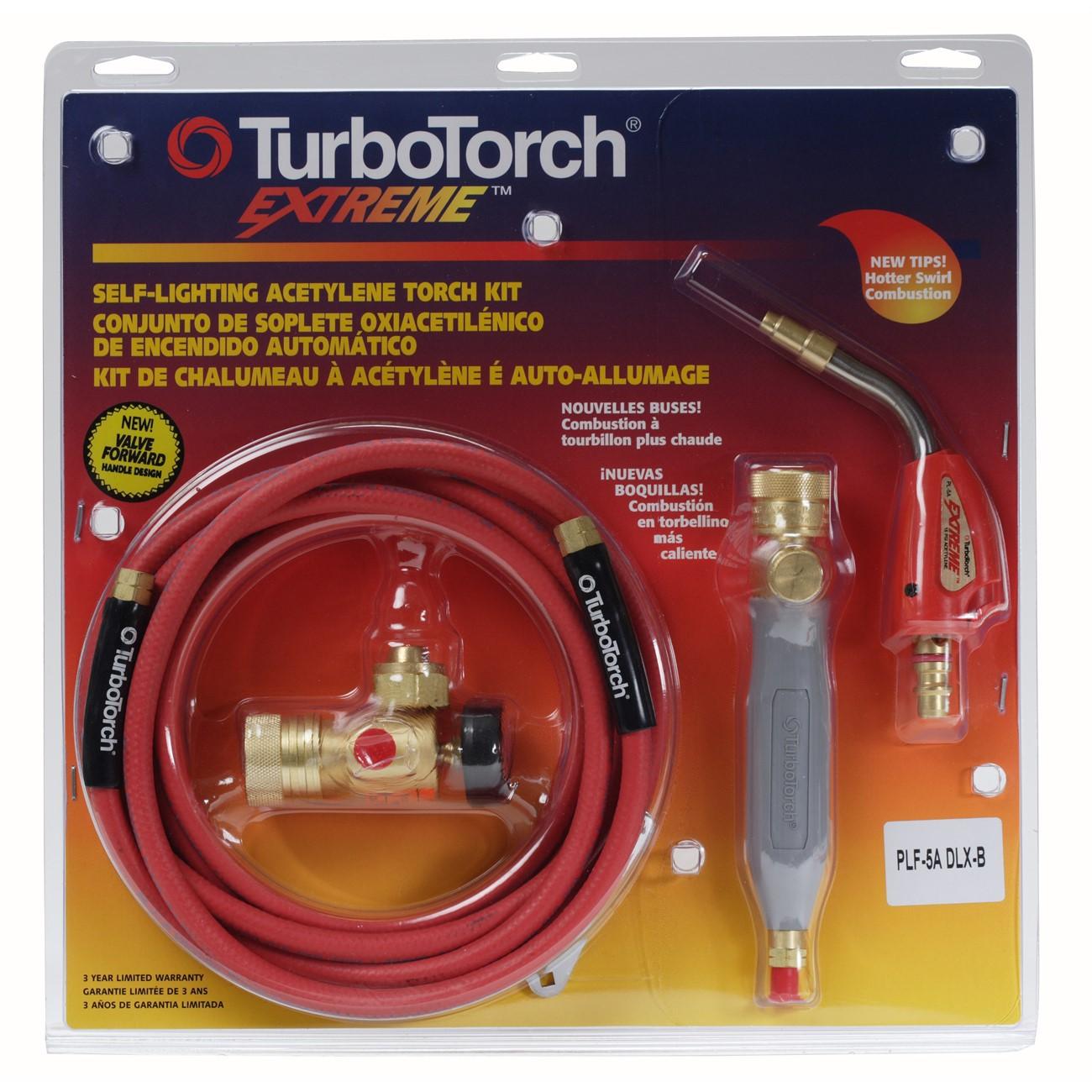

Turbo Torch 0386-0865 Air Acetylene Torch Kit

Product Description

The TURBO TORCH 0386-0865 is a self-lighting air acetylene torch kit designed for brazing, soldering, and light fabrication work in HVAC, plumbing, and related trades. Built around EXTREME Swirl Technology, the kit generates high heat output rapidly, reducing both brazing time and fuel consumption compared to conventional air acetylene setups. The valve-forward configuration gives technicians close control during operation. The kit ships complete with all components needed to begin work: an AR-B regulator with CGA 520 fitting, a PLF-A5 handle, an AH-12 hose, a PL-5A tip, B tank connections, and an instruction manual.

This kit is suited for residential and light commercial HVAC service, copper pipe brazing, and light fabrication tasks. The valve-forward handle design is a common preference among HVAC technicians working in confined spaces such as air handler cabinets and mechanical rooms. The quick-disconnect handle and tip system speeds up tip changes in the field, and color-coded O-rings allow fast identification of gas connections. Gauge guards and a cylinder wrench are included, making this a ready-to-work package for service vans and shop use alike.

Key Features

• EXTREME Swirl Technology reduces brazing time and fuel consumption
• Valve-forward configuration for close-quarter control during operation
• Quick-disconnect handle and replaceable tips for fast field service
• Color-coded O-rings for rapid gas connection identification
• Includes AR-B regulator (CGA 520), PLF-A5 handle, AH-12 hose, PL-5A tip, and B tank connections
• Gauge guards and cylinder wrench included

Compatibility

Connects to standard B-size acetylene cylinders via CGA 520 fitting. Designed for use with air acetylene fuel systems in HVAC, plumbing, and light fabrication applications.

Installation Notes

Installation and operation of this torch kit should be performed by a qualified technician familiar with compressed gas safety procedures. Ensure the cylinder valve is fully closed and the regulator is depressurized before connecting or disconnecting any fittings. Operate in well-ventilated areas and keep flame sources away from fuel connections during setup. Follow all applicable local codes and the manufacturer instruction manual included with the kit.

Technical Specifications

• Configuration: Valve Forward
• Regulator: AR-B, CGA 520
• Handle: PLF-A5
• Hose: AH-12
• Tip: PL-5A
• Tank Connection: B Tank
• Weight: 4 pounds
• Length: 13.9 inches
• Width: 14.5 inches
• Height: 2.8 inches
• UPC: 716352214704

Standard Information

• Brand: TURBO TORCH
• Manufacturer Part Number: 0386-0865
