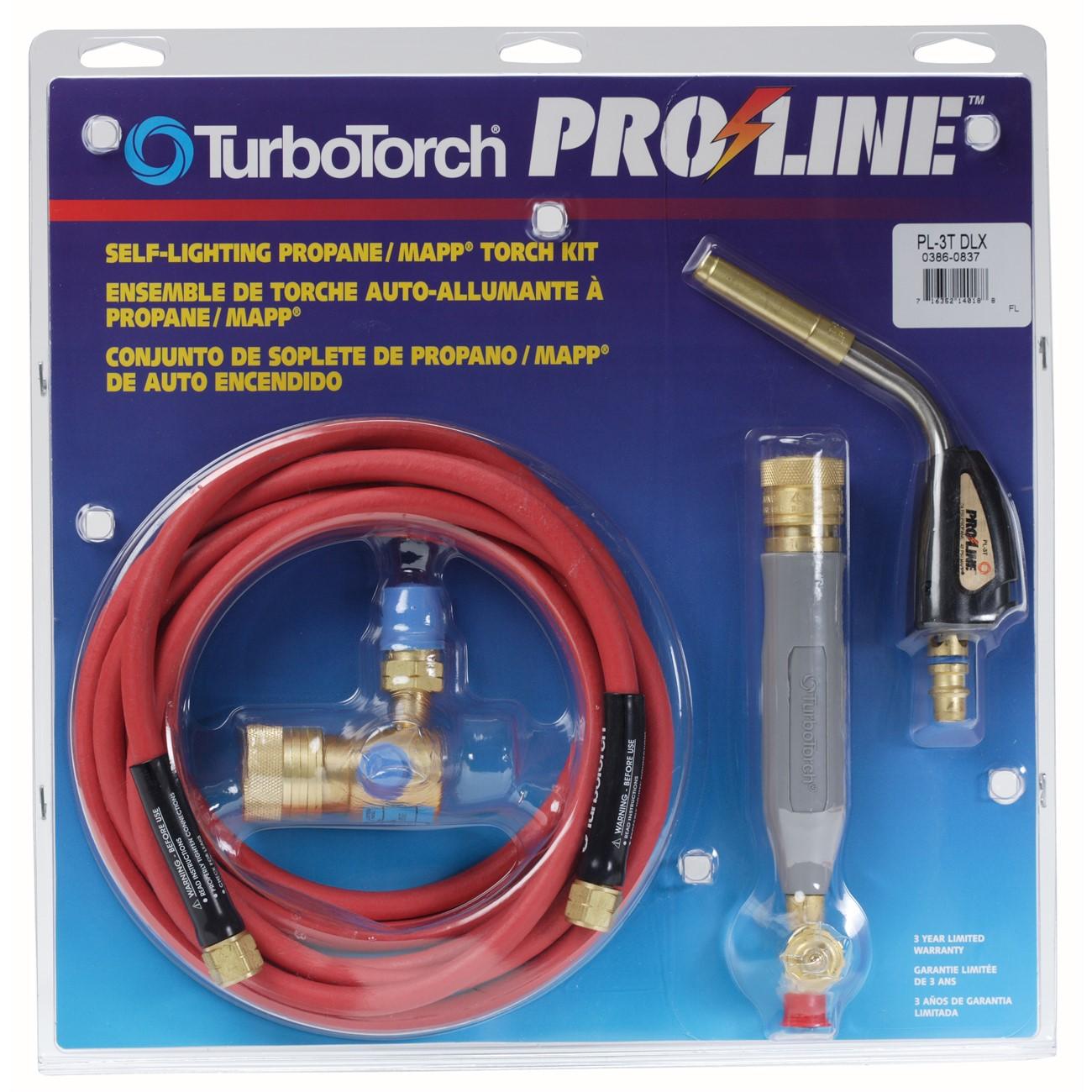

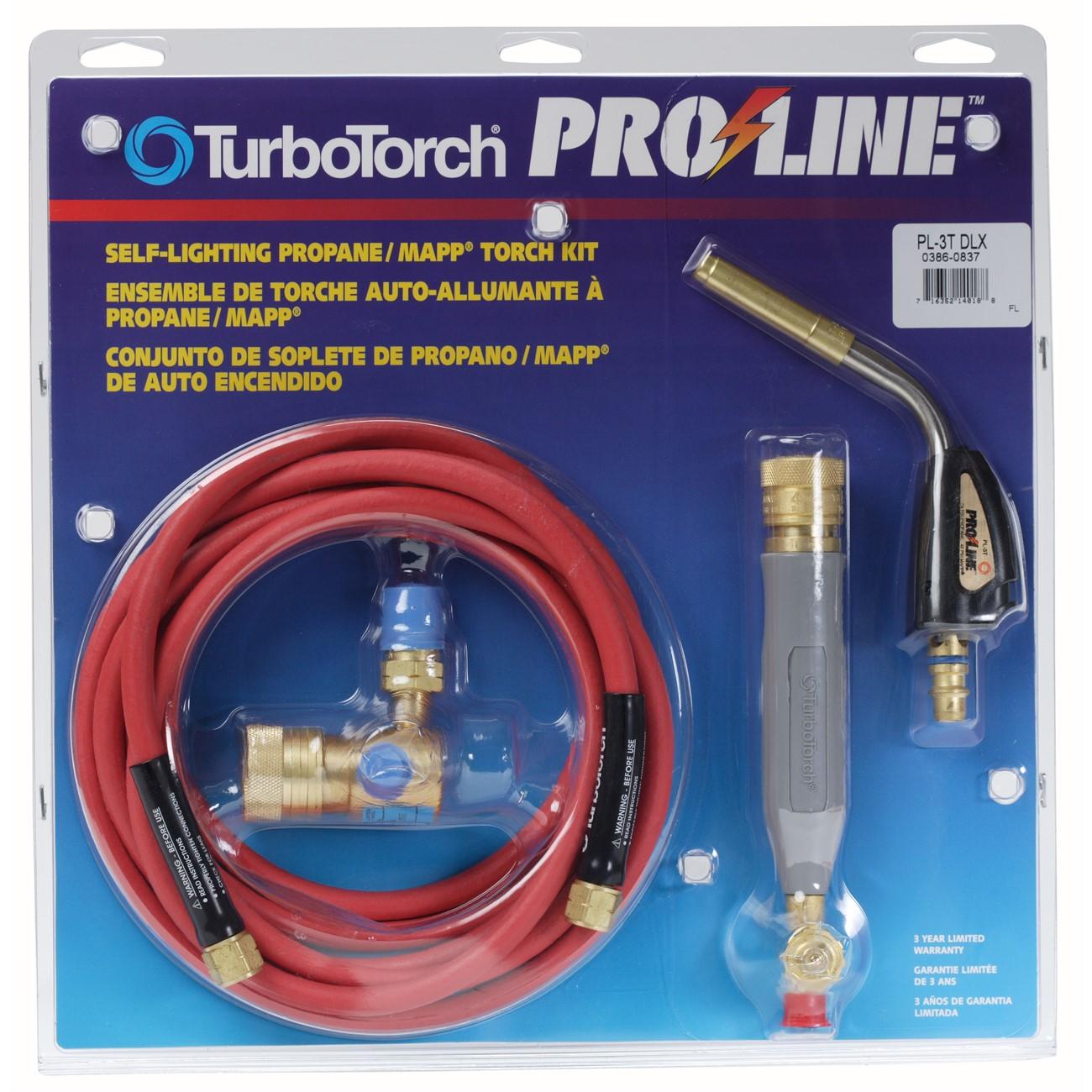

Turbo Torch 0386-0837 Torch Kit Rl-p Regulator Hvac

Product Description

The TURBO TORCH 0386-0837 is a complete torch kit built around the Proline series platform, engineered for reliable performance across HVAC, light fabrication, and hobbyist applications. The kit uses OS Swirl Combustion technology, which improves flame stability and heat transfer at the tip. It ships with an RL-P Regulator rated for CGA-510 cylinders, making it compatible with high-energy gases including MAP-Pro and propane. The included PL-3T tip features a quick-disconnect fitting, allowing fast tip swaps without tools. This kit is suited for licensed HVAC technicians performing brazing work as well as light fabrication trades needing a portable, self-contained torch setup.

The 0386-0837 kit targets residential and light commercial HVAC work, including copper pipe brazing, refrigerant line sets, and similar joining tasks. Light fabrication shops and hobbyists working with metal joining or heating applications will also find the kit appropriately sized. The full kit arrives ready to use: regulator, handle, hose, tip, and instruction manual are included in a single package. The quick-disconnect tip system means a technician can expand the kit's work range by adding compatible Proline-series tips without replacing the handle or hose.

Key Features

• OS Swirl Combustion technology improves flame stability and heat concentration
• RL-P Regulator with CGA-510 inlet supports MAP-Pro and propane cylinders
• PL-3T tip equipped with quick-disconnect fitting for fast tip changes
• H-12 hose and H-4 handle included — no additional components required to begin work
• Complete kit format reduces sourcing time for new setups or replacement rigs

Compatibility

The RL-P Regulator uses a CGA-510 connection, compatible with standard MAP-Pro and propane cylinders. The tip and handle use the Proline-series quick-disconnect system, allowing use with other compatible Proline-series tips.

Installation Notes

A licensed HVAC technician or qualified tradesperson should perform all brazing and torch work in accordance with applicable mechanical and fire codes. Shut off all gas supplies and verify the work area is clear of flammable materials before connecting the regulator to the cylinder. Inspect the hose and regulator fittings for damage before each use and never use thread sealant on CGA flare-style connections. Follow the included instruction manual for proper assembly sequence and leak-check procedures before igniting the torch.

Technical Specifications

• Regulator Type: RL-P, CGA-510 inlet
• Compatible Gases: MAP-Pro, Propane
• Included Components: RL-P Regulator, H-4 Handle, H-12 Hose, PL-3T Tip, Instruction Manual
• Tip Connection: Quick-disconnect
• Weight: 3.75 pounds
• Length: 14.2 inches
• Width: 9.5 inches
• Height: 9.7 inches
• UPC: 716352140188

Standard Information

• Brand: TURBO TORCH
• Manufacturer Part Number: 0386-0837
