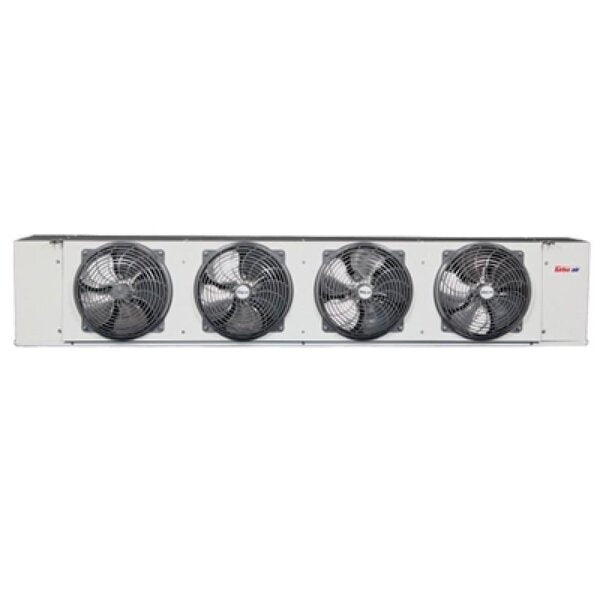

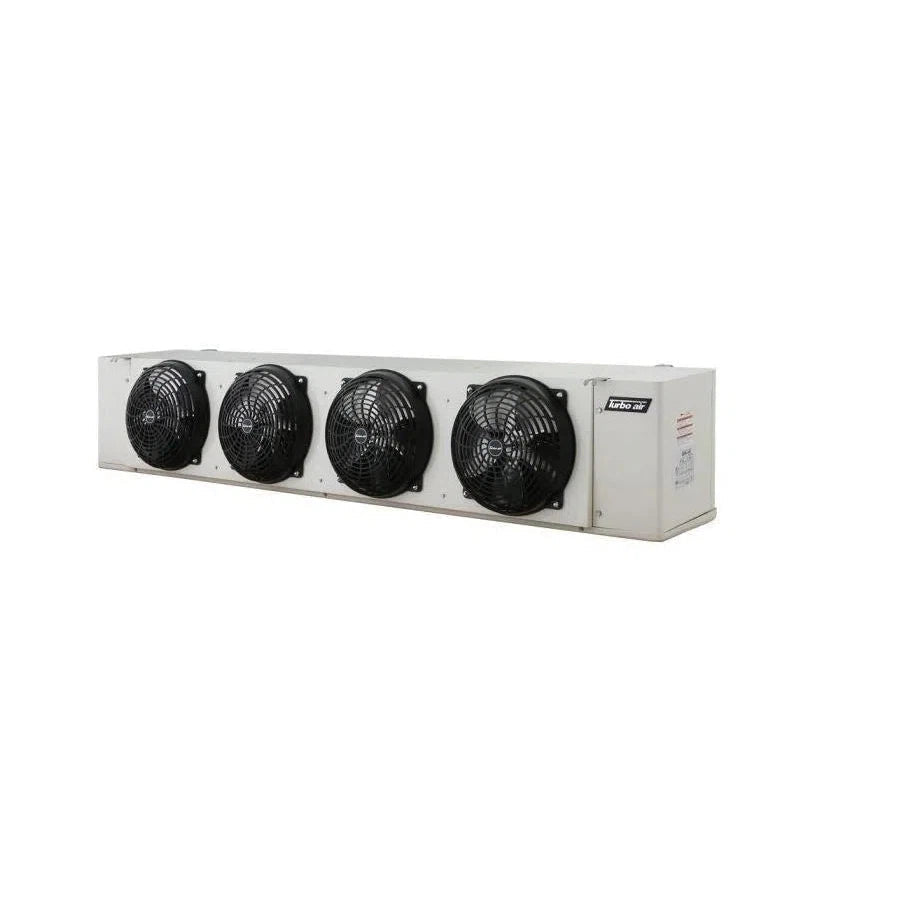

TURBO AIR LED124BENM Low Profile Freezer Evaporator

Product Description

The TURBO AIR LED124BENM is a low-profile evaporator designed specifically for freezer applications. This model features an electric defrost system to maintain efficiency during operation. The integrated EC motor supports dual-speed functionality, enhancing energy savings. With four fans, this unit ensures optimal air circulation and heat exchange.

• Electric defrost system included
• EC motor with dual-speed capability
• Four fans for effective air circulation

Product Highlights

This evaporator is constructed with a blue anti-corrosion fin to prolong the lifespan of the coil, along with a corrugated fin that improves the heat exchange process.

Product Information

Standard Information

• Power Consumption: 100
• Refrigerant Type: R404a, R448a, R449a

Technical Specifications

• Capacity BTU (-20°F SST): 12400
• Fan CFM: 3111
• Fan Count: 4
• Motor HP: 1/25
• Total Amps: 1.80
• Line Set Connection Size Inlet: 1/2 OD
• Line Set Connection Size Suction: 1 OD
• Line Set Connection Size Drain: 3/4 MPT
• Approx. Net Weight: 86 lbs
• Voltage: 208-230V/60Hz/1Ph
