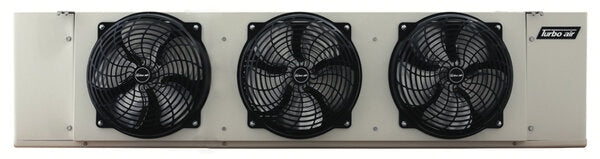

Turbo Air ADR191AENM Low Profile Evaporator Coil

Product Description

The Turbo Air ADR191AENM is a low-profile evaporator coil designed for refrigeration applications. This unit operates at 115V/60Hz/1Ph and has a cooling capacity of 19100 BTU. It features an air defrost system and an energy-efficient EC motor with dual-speed functions.

• Equipped with an EC motor for enhanced energy efficiency.
• Features anti-corrosion fins for increased durability.
• Designed with a low profile for space-saving installation.

Product Highlights

This evaporator coil is suitable for various refrigeration setups and is built to last with anti-corrosion technology.

Product Information

Standard Information

• Brand: Turbo Air
• MPN: ADR191AENM

Technical Specifications

• BTU Capacity (25°F SST): 19100
• Fan CFM: 2316
• Number of Fans: 3
• Motor Horsepower: 1/25 HP
• Motor Amperage: 2.25 A
• Power Consumption: 75 W
• Line Set Connection Size (Inlet): 1/2 OD
• Line Set Connection Size (Suction): 1 OD
• Line Set Connection Size (Drain): 3/4 MPT
• Approximate Net Weight: 68 lbs
• Refrigerant Type: R404a, R448a, R449a
• Input Voltage: 115V/60Hz/1Ph
