Tungaloy 6864162 LNMU0303ZER-MJ Milling Insert AH725

Product Description

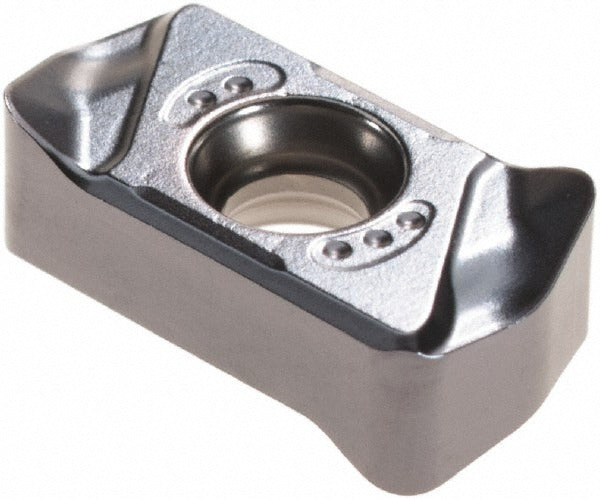

The TUNGALOY 6864162 is a solid carbide milling insert carrying the ANSI/ISO designation LNMU0303ZER-MJ in the AH725 manufacturer grade. This double-sided, negative-rake rectangle insert features a TiAlN coating applied via PVD process, delivering wear resistance across a broad range of cutting conditions. With four usable cutting edges and an MJ chip breaker geometry, it is designed for productive face and shoulder milling in CNC machining centers. The insert measures 0.2360 inches in inscribed circle diameter and 0.1690 inches in thickness, with a corner radius of 0.0472 inches (3/64 inch). Licensed machinists and CNC toolroom technicians are the primary installers.

This insert is suited for milling steel, stainless steel, cast iron, non-ferrous metals, superalloys, titanium, and hard materials, covering ISO material grades P15, M15, K25, and S15. Its maximum depth of cut is 1.00 mm (0.0390 inches), making it appropriate for light-to-moderate finishing and semi-finishing passes. It fits cutter bodies within the EXN03, TXN03, HXN03-M, EXN03-C, HXN03-M-C, and EXN03-N series from TUNGALOY, and is secured via screw-holding method. It is a right-hand insert.

Key Features

• Double-sided insert with 4 cutting edges for extended tool life per insert
• TiAlN PVD coating for high-temperature wear resistance across multi-material applications
• MJ chip breaker geometry optimized for controlled chip formation in mixed-material milling
• Negative rake and honed cutting edge style reduce chipping on entry and exit
• ISO-standard LNMU0303ZER-MJ designation simplifies cross-reference and sourcing
• Compatible with six TUNGALOY cutter body series for broad tooling flexibility

Compatibility

Compatible with TUNGALOY cutter body series EXN03, TXN03, HXN03-M, EXN03-C, HXN03-M-C, and EXN03-N. Secured by screw-holding method. ANSI and ISO code: LNMU0303ZER-MJ AH725.

Installation Notes

Installation is performed by a qualified CNC machinist or toolroom technician. Ensure the machine spindle is fully stopped and locked out before changing inserts. Use the appropriate Torx or hex key wrench for the cutter body screw seat to avoid stripping the clamp screw. Seat the insert fully against the pocket locating surfaces before tightening to ensure accurate edge positioning and repeatable runout.
