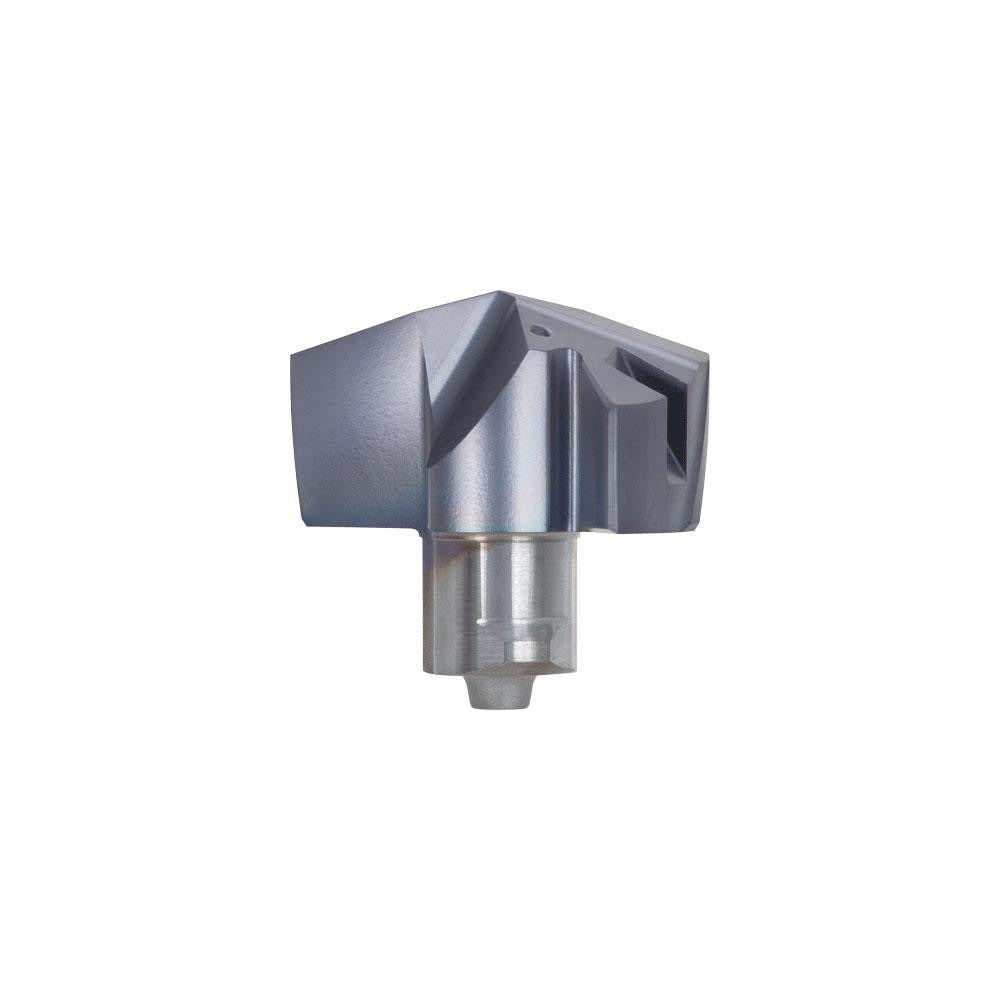

Tungaloy 6863054 Replaceable Drill Tip 0.5470in DMP139 AH725

Product Description

The TUNGALOY 6863054 is a replaceable drill tip designed for use with the Drill Meister modular drilling system. Manufactured from solid carbide with a TiAlN coating and produced to the AH725 grade, this tip delivers consistent cutting performance in demanding applications. It features a DMP139 insert geometry with a 140-degree drill point angle and a 13.90 mm (0.5470 inches) cutting diameter. The tip weighs approximately 0.026 pounds. Certified to AS 9100, ISO 14001, and ISO 9001:2008 standards, it is suited for production environments where dimensional accuracy and tool reliability are critical. Machinists and tooling technicians are the primary installers.

This drill tip is intended for use on steel, stainless steel, cast iron, superalloys, and titanium workpieces, covering ISO material groups P, M, K, and S. It is well suited for both production machining centers and manual milling operations where a modular, replaceable-tip drill system is in use. The DMP insert geometry and AH725 carbide grade are engineered to handle the elevated cutting forces and heat generated when drilling difficult-to-machine alloys and ferrous materials. The insert seat size is 13, corresponding to the matching Drill Meister holder body.

Key Features

• Solid carbide construction with TiAlN coating for heat and wear resistance
• AH725 manufacturer grade optimized for steel, stainless steel, cast iron, superalloys, and titanium
• DMP139 insert geometry with a 140-degree drill point angle for accurate entry and reduced thrust force
• 13.90 mm (0.5470 inches) cutting diameter with insert seat size 13
• Certified to AS 9100, ISO 14001, and ISO 9001:2008 quality and environmental standards
• Part of the Drill Meister series modular tooling platform for fast, repeatable tip changes

Compatibility

Designed as a replaceable tip for the TUNGALOY Drill Meister modular drill system, compatible with Drill Meister holder bodies accepting insert seat size 13. Verify holder series and seat size before ordering.

Installation Notes
