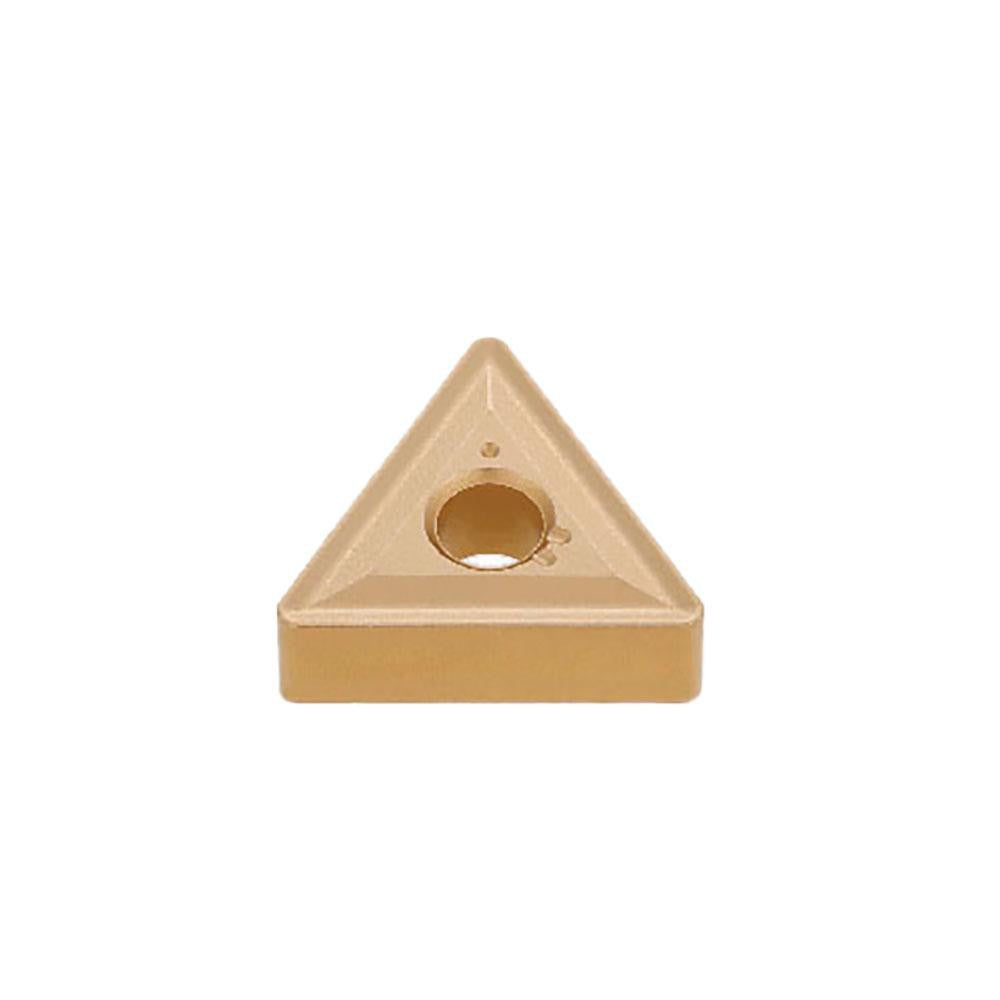

Tungaloy 6853027 TNMG432 T5125 Carbide Turning Insert

Product Description

The TUNGALOY 6853027 is a TNMG432 T5125 grade solid carbide turning insert designed for general-purpose metal removal on cast iron workpieces. It features a CVD-applied multilayer coating of TiCN, Al2O3, and TiN, which provides wear resistance and thermal stability during continuous and interrupted cuts. The insert has a 60-degree triangular shape with a neutral hand orientation, a 0.5-inch inscribed circle, a 0.0315-inch corner radius, and a maximum depth of cut of 0.2362 inches. Cutting edges are chamfered and honed for consistent edge integrity. Six usable cutting edges are available per insert, making this a cost-effective choice for production turning operations.

This insert is suited for turning, facing, and boring operations on cast iron at the K15 and K30 material grades. It fits standard TNMG-style toolholders using clamp or pin holding methods. Typical applications include CNC lathe and manual lathe work in job shop and production environments where cast iron components require reliable, repeatable surface finishes and dimensional control. The negative rake geometry at -15 degrees provides added edge strength when cutting abrasive or hard cast iron grades.

Key Features

• CVD multilayer coating: TiCN, Al2O3, and TiN for wear and thermal resistance
• 60-degree triangle insert shape with neutral hand orientation
• Six cutting edges per insert for extended tool economy
• Chamfered and honed cutting edge style for consistent performance
• Compatible with clamp and pin holding methods
• Suitable for turning, facing, and boring on cast iron (K15, K30)

Compatibility

Designed as an OEM-style replacement for standard TNMG 432 toolholder seats using clamp or pin clamping. Conforms to ANSI and ISO standards for TNMG 432 insert geometry.

Installation Notes

Installation is performed by machining technicians using standard insert toolholders rated for TNMG-style inserts. Power down and lock out the machine before seating or replacing inserts. Use proper insert handling tools to avoid contact with the cutting edge. Confirm clamp torque and seat cleanliness per the toolholder manufacturer guidelines before resuming cutting operations.
