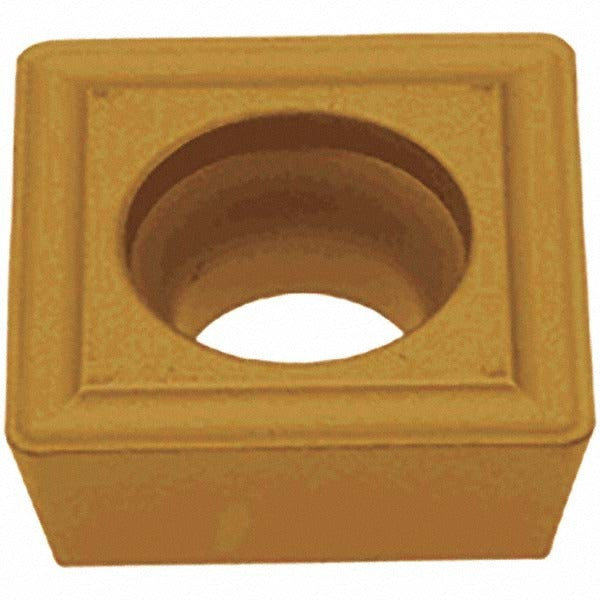

Tungaloy 6852460 Turning Insert SPMT090308-24 AH120

Product Description

The TUNGALOY 6852460 is a solid carbide turning insert in the SPMT090308-24 geometry, manufactured in grade AH120 with a PVD-applied TiAlN coating. The square insert profile (90-degree included angle) provides four usable cutting edges, and the positive rake angle of 6 degrees reduces cutting forces on the workpiece. With a 0.0315-inch corner radius and a honed cutting edge style, this insert balances edge strength with surface finish quality. It is designed for screw-clamped toolholders and is suited for general turning, facing, and boring operations on a lathe or machining center.

This insert is rated for use on steel, stainless steel, cast iron, superalloys, titanium, and hard materials, covering ISO material codes P, M, K, S, and H. Applicable material grades include P15, P25, M15, M25, K15, K30, S10, and S25. The chip breaker designation 24 optimizes chip control across these material groups. The insert is appropriate for light-to-medium roughing and semi-finishing passes where maximum depth of cut reaches 0.1181 inches (3.00 mm). It conforms to ANSI and ISO standards and carries ISO code SPMT 090308 and industry standard number SPMT 322-24.

Key Features

• Four cutting edges per insert - extends consumable life and reduces per-edge cost
• PVD TiAlN coating provides thermal and wear resistance across a broad range of workpiece materials
• Positive 6-degree rake angle reduces cutting forces, beneficial on thin-wall and flexible workpieces
• Honed cutting edge style improves edge toughness and reduces micro-chipping risk
• Chip breaker designation 24 suits turning, facing, and boring applications
• Conforms to ANSI and ISO standards - compatible with standard SPMT screw-clamp toolholders

Compatibility

Designed for use in standard SPMT screw-clamp toolholders accepting a 3/8-inch inscribed circle square insert with a 0.173-inch hole diameter. Conforms to ANSI and ISO SPMT 090308 geometry standards.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. Power down and lock out the machine spindle before indexing or replacing inserts. Use the correct torx or hex key for the clamping screw and seat the insert fully against the pocket walls and base before torquing. Inspect the insert pocket for chips or debris before seating a new edge, as contamination in the pocket can cause premature edge failure or poor surface finish.
