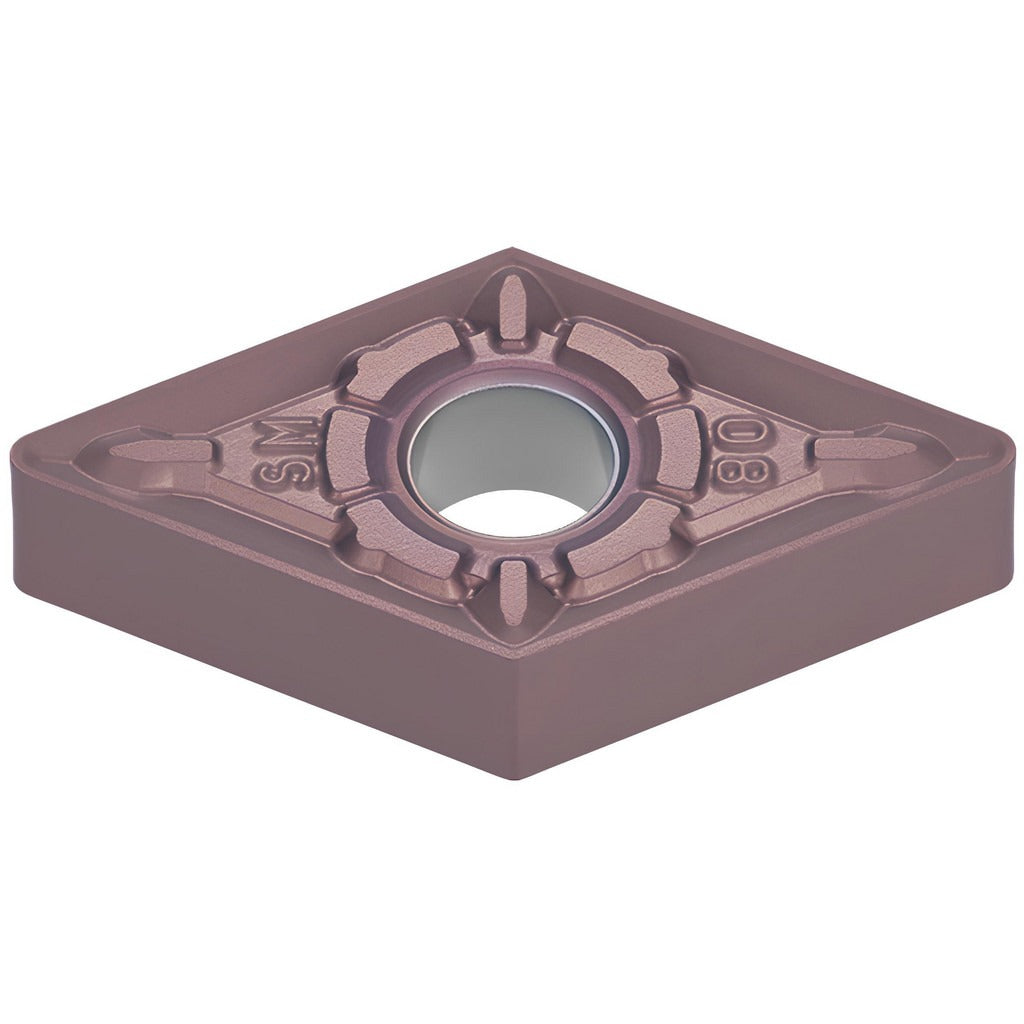

Tungaloy 6825573 DNMG431SM AH6225 Turning Insert

Product Description

The TUNGALOY 6825573 is a DNMG431SM-series indexable turning insert manufactured from solid carbide and finished with a multilayer PVD coating combining TiAlN and TiCN. Designated grade AH6225, it features a 55-degree diamond shape, a neutral hand orientation, and a chamfered and honed cutting edge style. The insert carries a negative rake angle of -10 degrees and provides four usable cutting edges per insert. With a 0.5-inch inscribed circle and a 0.016-inch corner radius, it is sized for medium-duty material removal in both roughing and finishing passes. Licensed machinists and CNC turning specialists install this insert in compatible toolholders on lathes and machining centers.

This insert is rated for primary use on steel (ISO material code P) and stainless steel (ISO material code M), covering material grades P20, P30, M20, and M30. It supports turning, facing, boring, back turning, and back boring operations, making it adaptable across a range of lathe and live-tooling setups. Maximum depth of cut reaches 0.1575 inches, and the insert accommodates length-range applications from 0.7 to 10 inches. Its SM chip breaker geometry is suited to controlled chip formation in continuous and interrupted cuts on ferrous alloys.

Key Features

• Multilayer PVD coating: TiAlN plus TiCN for thermal resistance and wear control on ferrous materials
• AH6225 carbide grade covers P20, P30, M20, and M30 material classifications
• Four cutting edges per insert for extended tool life per unit
• SM chip breaker geometry promotes reliable chip evacuation in steel and stainless turning
• Chamfered and honed edge prep reduces micro-chipping at entry and during interrupted cuts
• Neutral hand designation fits standard DNMG-style toolholders with clamp or pin holding

Compatibility

Designed as an OEM-style replacement and direct-fit insert for DNMG-series toolholders that accept a 55-degree diamond insert with clamp or pin holding, conforming to ANSI and ISO standards under ISO designation DNMG150404-SM and industry standard number DNMG 431 SM.

Installation Notes

Installation is performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine spindle before seating or replacing any indexable insert. Verify the toolholder pocket and clamping hardware are free of chips and debris before positioning the insert. Do not exceed the recommended depth of cut for the workpiece material grade, and always confirm clamp torque against the toolholder manufacturer's specification.
