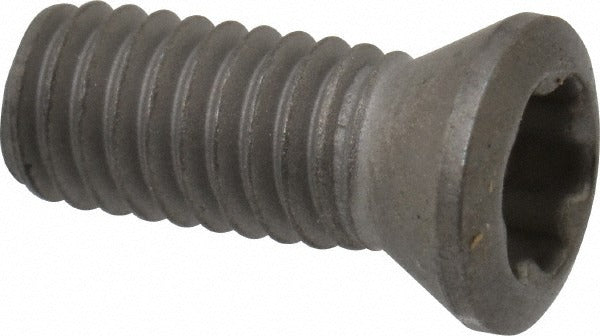

Tungaloy 6815314 Cap Screw Indexables TP15 Torx

Product Description

The TUNGALOY 6815314 is a TP15 Torx drive cap screw designed to secure indexable inserts in face mill and shell mill toolholders. This small-format fastener is a critical retention component in indexable cutting tool assemblies, keeping inserts locked under the high radial and axial forces generated during milling operations. It is compatible with the IP-15D key driver and is intended for use in toolholder styles TAW13 and TPW13. Machinists and tooling technicians working with TUNGALOY indexable milling systems will recognize this screw as the standard hardware for the insert pocket on these platforms.

This cap screw is used in face mill and shell mill applications across both production and job-shop environments. It applies directly to toolholder styles TAW13 and TPW13 and is the specified retention hardware for a broad range of TUNGALOY indexable insert grades and geometries. Proper torque application at installation is essential to insert seating and tool performance during interrupted and continuous milling cuts on ferrous and non-ferrous workpieces.

Key Features

• TP15 Torx drive accepts IP-15D key driver for precise torque application
• Designed as insert retention hardware for face mill and shell mill toolholders
• Compatible with toolholder styles TAW13 and TPW13
• Fits a wide range of TUNGALOY SWGT, SWMT, SWMW, and WWCW series indexable inserts
• Lightweight at 0.1 pounds per unit, minimizing toolholder mass contribution

Compatibility

Compatible with toolholder styles TAW13 and TPW13. Confirmed insert compatibility includes: SWGT 1304PDPR MJ, SWGT 13T3AFPR MJ, SWMT 1304PDER ML, SWMT 13T3AFER ML, SWMT 13T3AFPR MJ, SWMT 13T3AFPR MS, WWCW 13T3AFER WS, SWGT 1304PDFR AJ, SWGT 13T3AFFR AJ, SWMT 1304PDPR MJ, SWMT 1304PDPR MS, SWMT 13T3AFPR HJ, SWMW 13T3AFTR, WWCW 13T3AFFR WD, and WWCW 1 series inserts as specified in the supplier data. Drive key compatibility: IP-15D.

Installation Notes

Installation is performed by tooling technicians or machinists during insert changes or toolholder setup. Power down and lock out the spindle before servicing any indexable toolholder. Use the specified IP-15D Torx key driver to seat and tighten the screw - do not substitute an off-size driver, as Torx socket damage will compromise retention integrity. Inspect the screw threads and seating surface for wear or damage at each insert change interval.
