Tungaloy 6802295 Cnmg 643 Th AH120 Turning Insert

Product Description

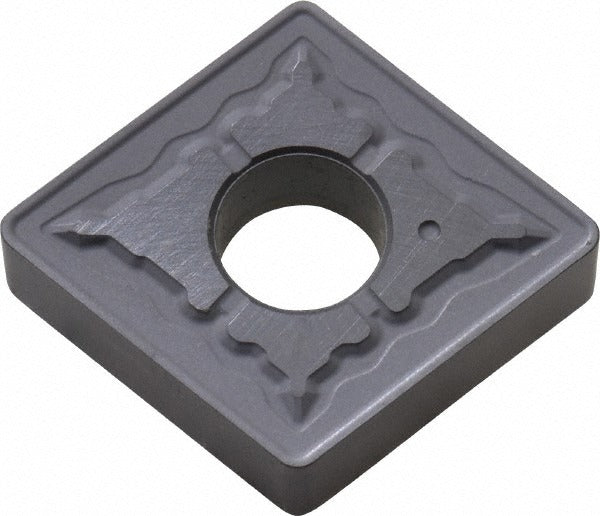

The TUNGALOY 6802295 is a CNMG-series indexable turning insert designed for general-purpose metal cutting in CNC and manual turning applications. Manufactured from solid carbide and coated with TiAlN via a PVD process under the AH120 grade designation, this insert delivers wear resistance and thermal stability across a range of workpiece materials. The insert features an 80-degree diamond shape, a neutral hand orientation, and a chamfered and honed cutting edge style. With four usable cutting edges and a negative rake geometry, it is suited for moderate to heavy interrupted and continuous cuts on steel and related alloys. Licensed machinists and CNC setup techs are the primary installers.

This insert is rated for use on steel, stainless steel, cast iron, superalloys, titanium, and hard materials, corresponding to ISO material codes P, M, K, S, and H. It is appropriate for turning, facing, and boring operations in both production and job-shop environments. The TH chip breaker geometry is engineered to manage chip flow at moderate cutting parameters across these material groups. Applicable material grades include P15, P25, M15, M25, K15, K30, S10, and S25.

Key Features

• TiAlN PVD coating under AH120 grade for heat and wear resistance on difficult-to-machine materials
• 80-degree diamond insert shape (CNMG) with negative rake angle of -20 degrees for stable, rigid cutting
• Four cutting edges with chamfered and honed edge prep for reliable edge strength
• TH chip breaker design for effective chip control across steel, stainless steel, cast iron, superalloys, and hard materials
• Clamp and pin holding method compatible with standard CNMG toolholders
• Conforms to ANSI and ISO standards; ISO code CNMG 643 TH

Compatibility

Designed as an OEM-style replacement or direct fitment for standard CNMG 643 TH toolholder pockets conforming to ANSI and ISO specifications. Suitable for any toolholder accepting a CNMG insert with a 0.3120-inch hole diameter and clamp-and-pin retention.

Installation Notes

Installation is performed by a qualified machinist or CNC technician. Power down and lock out the machine spindle before indexing or replacing inserts. Use the correct torque driver or clamp screw specified by the toolholder manufacturer to seat the insert securely without overloading the clamp. Inspect the insert pocket and locating surfaces for chips or debris before seating a new insert to ensure accurate positioning.
