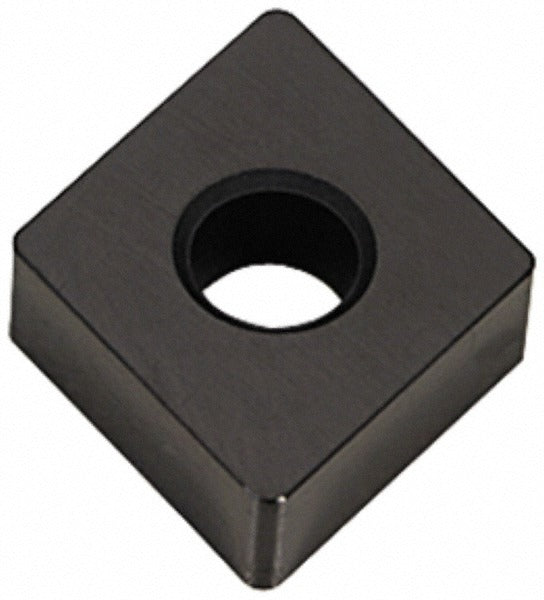

Tungaloy 6801840 CNGA433 LX11 Ceramic Turning Insert

Product Description

The TUNGALOY 6801840 is a ceramic turning insert in the CNGA433 LX11 grade, designed for precision material removal on hard workpiece materials. Manufactured from Alumina TiC ceramic and finished with a PVD-applied TiN coating, this insert delivers thermal resistance and edge stability during interrupted and continuous cuts. The 80-degree diamond shape with a negative rake angle provides a strong cutting geometry suited to finishing and semi-finishing operations. The honed cutting edge style reduces micro-chipping on first engagement, extending insert life on hardened steels and other difficult-to-machine materials.

This insert is intended for turning, facing, and boring operations on hard materials, making it a common choice for machinists and toolroom technicians working with hardened steels, chilled cast iron, and similar high-hardness workpieces. The flat-top chip breaker geometry is optimized for controlled chip flow at the light depths of cut typical in hard-turning applications. It is held in place using a clamp and pin method, compatible with standard CNGA-style toolholders used on CNC lathes and manual turning centers.

Key Features

• Alumina TiC ceramic substrate for high heat and wear resistance in hard-turning applications
• PVD TiN coating reduces friction and extends cutting edge life
• 80-degree diamond insert shape with negative rake for maximum edge strength
• Honed cutting edge style minimizes micro-chipping on engagement
• Flat-top chip breaker geometry supports controlled chip flow at shallow depths of cut
• Four usable cutting edges per insert for cost-effective tool management
• Clamp and pin holding method for secure seating in CNGA-style toolholders

Compatibility

Designed as an OEM-style replacement or direct-fit insert for CNGA-style toolholders conforming to ANSI and ISO standards for the CNGA 433 insert size code. Multi-use application includes turning, facing, and boring.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Power down and lock out the machine spindle before indexing or replacing inserts. Use the appropriate torque wrench and clamp hardware specified for CNGA-style toolholders to ensure proper seating. Inspect the toolholder pocket and locating pin for wear or debris before installing a new insert.
