Tungaloy 6801833 Ceramic Turning Insert CNGA432 LX11

Product Description

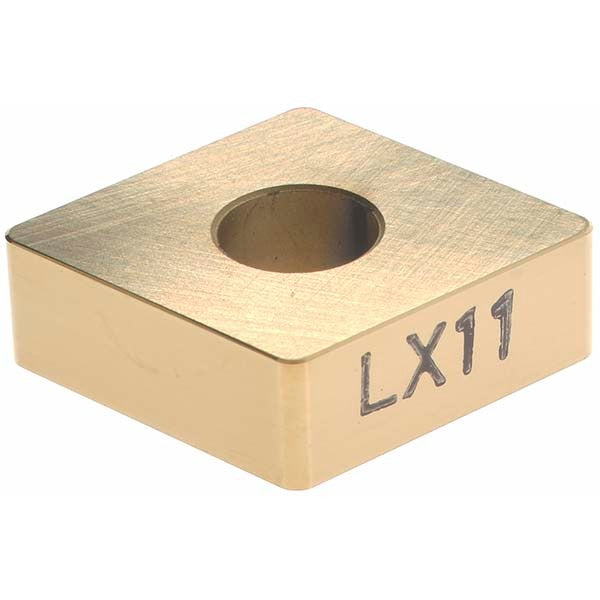

The TUNGALOY 6801833 is a ceramic turning insert in the CNGA432 configuration, grade LX11, with a physical vapor deposition (PVD) TiN coating applied over an alumina TiC ceramic substrate. It features an 80-degree diamond (rhombic) shape, a neutral hand, and a negative rake and side clearance geometry. With four usable cutting edges and a honed edge preparation, this insert is designed for finishing operations on hard materials. Licensed machinists and CNC operators use it for turning, facing, and boring applications where surface finish and dimensional accuracy on hardened workpieces are the priority.

This insert is suited for hard turning applications in both production and job-shop environments. The flat-top chip breaker geometry is optimized for finishing cuts at shallow depths, with a maximum depth of cut of 0.0787 inches. Its ceramic substrate with TiN coating delivers the heat resistance needed when cutting hardened steels and similarly hard workpiece materials. The CNGA432 geometry and negative clearance design require a compatible negative-style toolholder with the appropriate CNGA pocket configuration.

Key Features

• Alumina TiC ceramic substrate with PVD TiN coating for elevated heat and wear resistance
• 80-degree diamond insert shape (ANSI: CNGA432 / ISO: CNGA120408) with neutral hand
• Four cutting edges with honed edge preparation for consistent finishing performance
• Flat-top chip breaker geometry optimized for finishing on hard materials
• Negative rake and negative side clearance for rigid, stable clamping via pin and clamp holding method
• Multi-use compatibility: turning, facing, and boring operations

Compatibility

Designed as an OEM-style replacement or direct application insert for negative-style CNGA toolholders accepting the CNGA432 (ISO CNGA120408) insert geometry. Verify toolholder pocket style and insert seating before installation.

Installation Notes

This insert is installed by licensed machinists or CNC tooling technicians. Power down and lock out the machine before indexing or replacing inserts. Use the appropriate torque driver for the clamp or pin-lock system per the toolholder manufacturer's specifications. Inspect the toolholder pocket and seating surfaces for chips or wear before seating a new insert, and never force an insert into a pocket that shows damage.
