Tungaloy 6775778 CPMT21.50.5PS AH8005 Turning Insert

Product Description

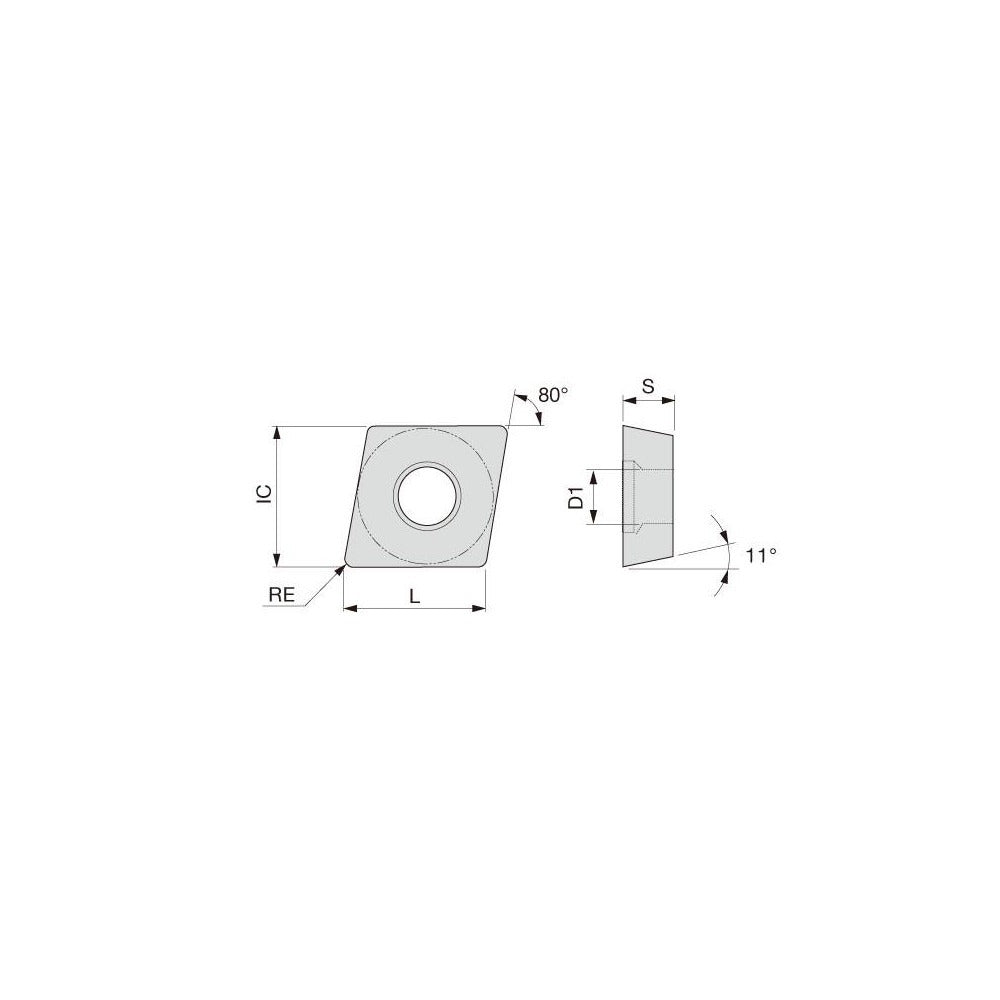

The TUNGALOY 6775778 is a solid carbide turning insert in the CPMT-PS series, designated CPMT21.50.5PS with grade AH8005. It features a PVD-applied TiAlN coating that provides thermal and wear resistance for demanding cutting operations. The insert has an 80-degree diamond shape, a neutral hand orientation, a 0.25-inch inscribed circle, and a corner radius of approximately 0.008 inches. It is held in place by a screw-type clamping system and is designed for use in CNC and manual turning operations. Licensed machinists, CNC setup technicians, and tooling specialists work with this insert in production and job-shop environments.

This insert is engineered for turning, facing, and boring applications. Its primary workpiece material targets are stainless steel, superalloys, titanium, and hard materials, corresponding to ISO material grades M01, M10, S01, and S10. The PS chip breaker geometry and positive rake angle of 10 degrees support controlled chip formation and reduced cutting forces when machining these challenging materials. The insert delivers two cutting edges per unit, extending tool life between index cycles.

Key Features

• TiAlN coating applied via PVD process for elevated heat and wear resistance
• 80-degree diamond insert shape with positive rake for efficient chip evacuation
• PS chip breaker geometry optimized for stainless steel, superalloys, and hard materials
• Two usable cutting edges per insert for extended service between replacements
• Screw-type insert holding method for secure, repeatable seating
• Honed cutting edge style reduces micro-chipping on difficult workpiece materials

Compatibility

Designed for use in CPMT-style screw-on turning toolholders conforming to ANSI and ISO standards for CPMT 21.50.5 inserts. Verify toolholder pocket specifications before installation.

Installation Notes

Insert installation and indexing should be performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine spindle before handling any insert. Use the appropriate torx or hex key to seat the clamping screw to the toolholder manufacturer's specified procedure. Inspect the toolholder pocket and clamping screw for wear or contamination before seating a new insert.
