Tungaloy 6771249 DMP175 Replaceable Drill Tip 17.50mm

Product Description

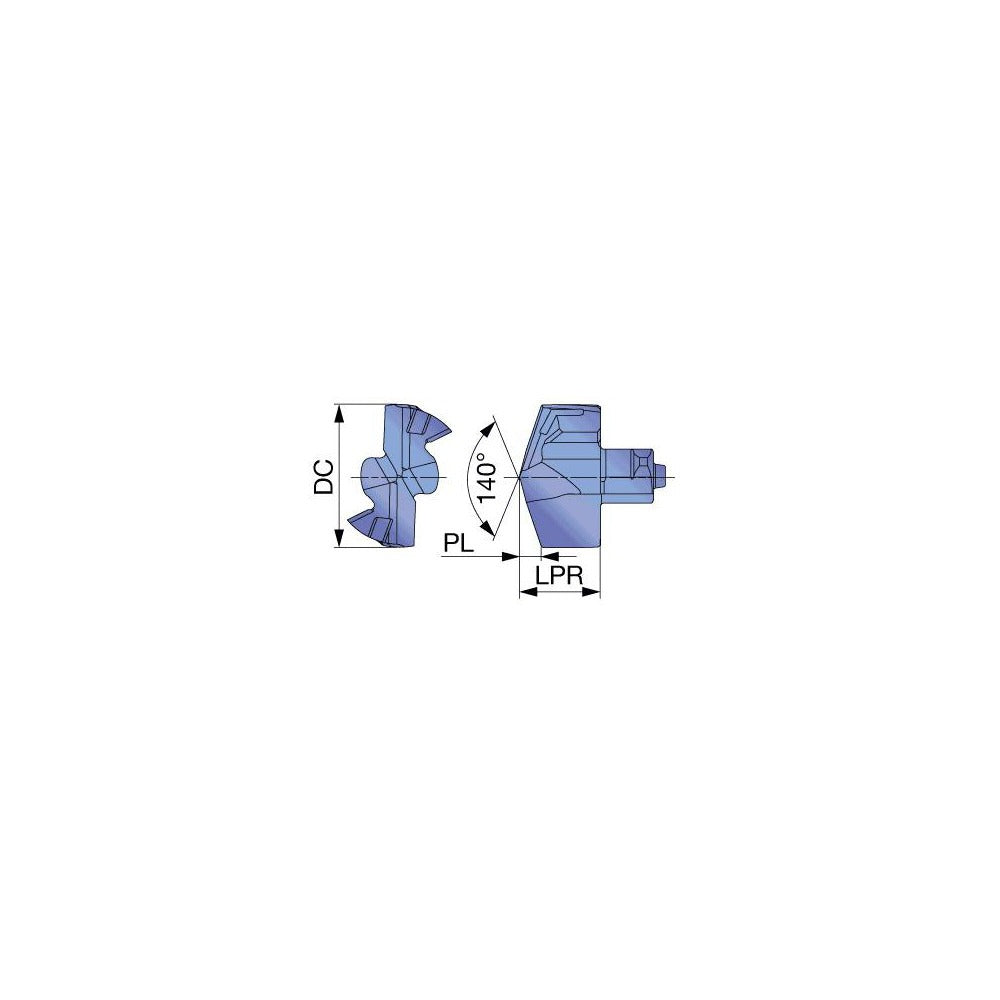

The TUNGALOY 6771249 is a replaceable drill tip in the DMP series, designed for use with compatible indexable drill bodies in general holemaking operations. Manufactured from solid carbide with manufacturer grade AH9130 and a PVD-applied TiAlN coating, this tip delivers wear resistance across a broad range of workpiece materials. The 140-degree included drill point angle and regular helical flute geometry support controlled chip evacuation and consistent entry geometry. The tip is secured via clamp-style insert holding and weighs approximately 0.09 pounds. Licensed machinists and CNC tooling technicians are the typical end users for this type of replaceable tip system.

This drill tip is suited for general drilling and holemaking applications in steel, stainless steel, cast iron, superalloys, and titanium - corresponding to ISO material grades P15, P35, M25, M35, K10, K25, S15, and S30. It is intended for use in production environments where repeatable hole quality and quick tip replacement without removing the drill body from the machine are priorities. The DMP series design accommodates insert seat size 17. Coolant-through capability is not supported by this tip.

Key Features

• Solid carbide construction with AH9130 grade for high hardness and thermal stability
• PVD TiAlN coating for oxidation resistance and extended tool life in steel and stainless steel
• 140-degree standard point angle for balanced entry force and point geometry
• 2-flute regular helical design promotes efficient chip evacuation
• Clamp-style insert holding for secure seating and repeatable positioning
• Compatible with ISO material grades P, M, K, and S - broad material range coverage

Compatibility

Designed as a replaceable tip for DMP series indexable drill bodies with insert seat size 17, ISO number DMP175. Verify body compatibility against the DMP series seat specification before ordering.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician with the machine powered down and the spindle locked. Use the manufacturer-specified clamp screw and torque tool for the DMP series seat - do not substitute hardware. Inspect the insert pocket for chips or damage before seating the tip. Confirm secure clamping before returning the machine to operation.
