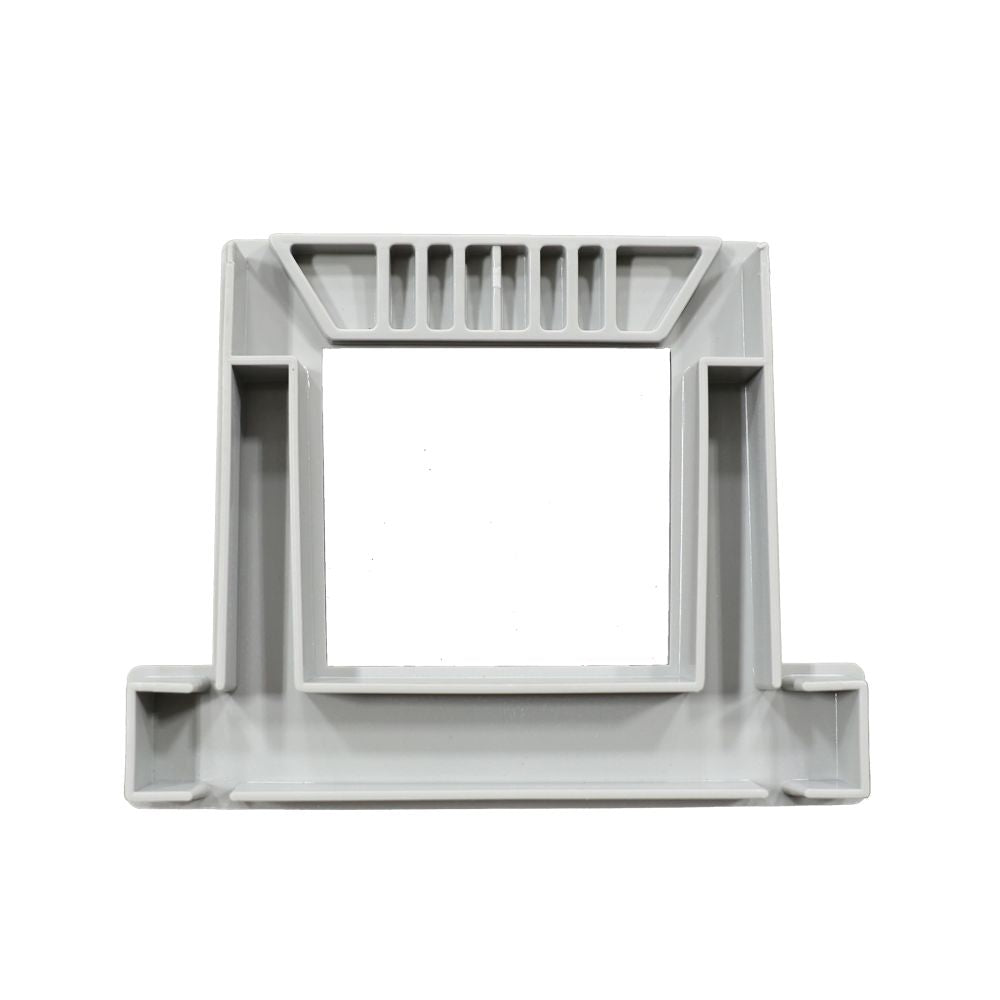

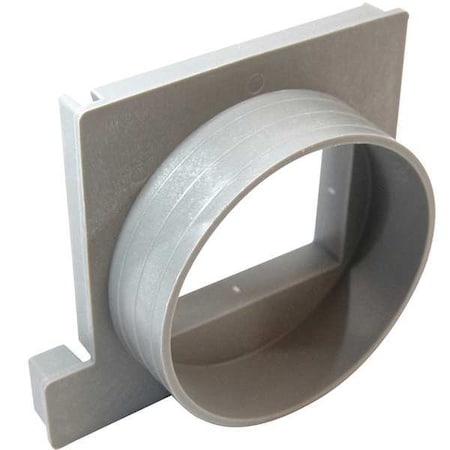

Tuf-Tite TR1-D4 End Drain (5 inchesL x 5 inchesW x 2 inchesD)

Product Description

The TUF-TITE TR1-D4 male end drain is designed for use with the Tuf-Tite TR1 Trench Drain system. It allows for water discharge into 4-inch piping systems. Constructed from high-density polyethylene (HDPE), it snaps onto the female end of a trench unit for horizontal water discharge.

• Snap-On Installation: Engineered to snap easily onto the female end of the TR1 trench drain without complex tools.
• Versatile Pipe Compatibility: Accepts 4" SDR35-3034 pipe and 4" 2729 pipe directly; also accepts 4" corrugated pipe when used with an MF-4 pipe connector.
• Heavy-Duty Durability: Rated for H-20 wheel loads (235 psi) when installed correctly, making it suitable for high-traffic areas like driveways or loading docks.

Product Highlights

The TUF-TITE TR1-D4 end drain is made from UV-stabilized HDPE for environmental resistance and is rated for 235 psi when correctly installed.

Product Information

Standard Information

• Brand: TUF-TITE
• Manufacturer Part Number: TR1-D4
• Country of Origin: United States

Technical Specifications

• Size: 5"L x 5"W x 2"D
• Depth: 2"
• Width: 5"
• Length: 5"
• Material: Plastic
• Fits Brand: TUF-TITE
• For Use With: TRI, Accepts 4" SDR-3034 or 4" 2729 Pipe, Also Accepts 4" Corrugated Pipe with MF-4 Pipe Connector
• Product Type: End Drain
• Pipe Dia. - Drains: 5"
• Connection - Drains: Screw
• Material of Construction: Plastic
• Application: Drain
• Brand Name: Tuf-Tite
• MPN: TR1-D4
• Suitable For Use With: SDR-3034 or 4 in 2729 Pipe Also Accepts 4 in Corrugated Pipe with MF-4 Pipe Connector
• Material of Construction - Drains: Plastic
