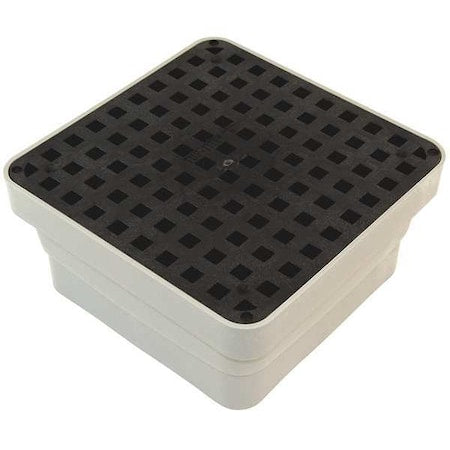

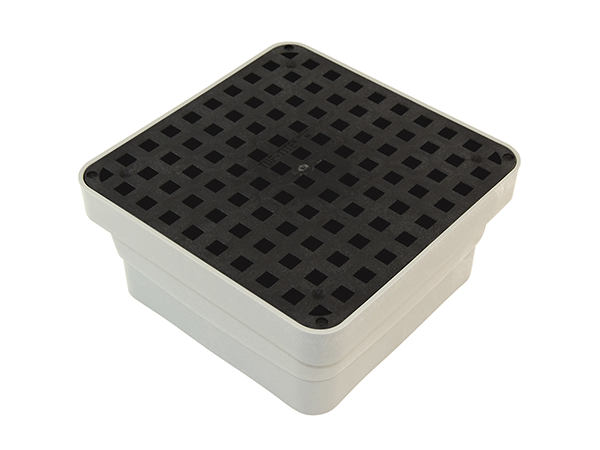

Tuf-Tite AD1 Area Drain with ADA Grate 11 inches x 11 inches x 5 inches

Product Description

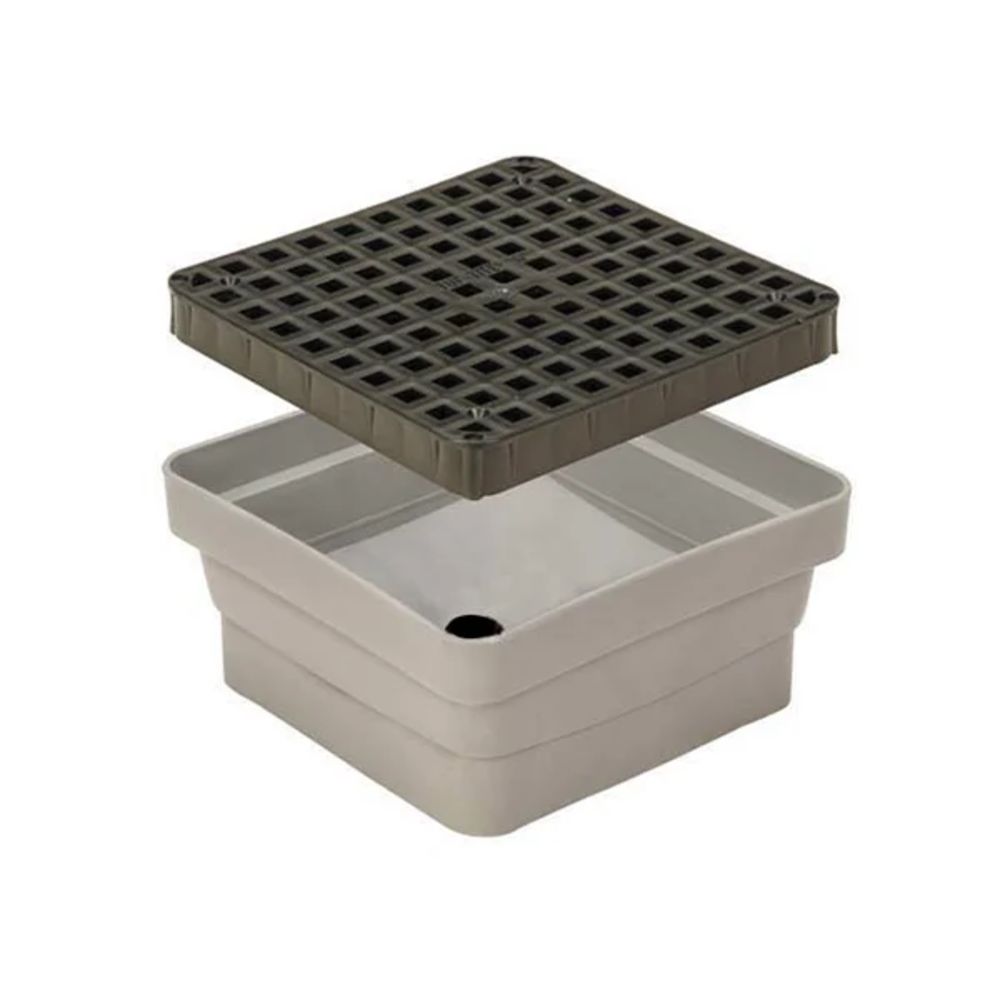

The TUF-TITE AD1 area drain features an ADA grate with 1/2" x 1/2" openings. Load Rating 'C' supports medium truck traffic. The 11" x 11" grate secures with screws to the 5" deep drain. The AD1 is compatible with 3" Schedule 40, 4" SDR35, and 6" ASTM3034 pipe.

• ADA Compliant grate with 1/2" x 1/2" openings
• Load Rating 'C' supports medium truck traffic
• Compatible with 3" Schedule 40, 4" SDR35, and 6" ASTM3034 pipe

Product Highlights

The TUF-TITE AD1 area drain is a durable and versatile drainage solution suitable for indoor and outdoor applications. Its compact design and ADA-compliant grate make it ideal for various settings.

Product Information

Standard Information

• Brand: TUF-TITE
• Manufacturer Part Number: AD1
• Country of Origin: United States

Technical Specifications

• Size: 11 x 11
• Type: Kit
• Item [Specifications]: Area Drain
• Depth [Specifications]: 5"
• Width [Specifications]: 11"
• Length [Specifications]: 11"
• Material [Specifications]: Plastic
• Standards [Specifications]: ADA compliant
• Grid Material [Specifications]: Polypropylene
• Depth - Drains [Specifications]: 5 in
• Width - Drains [Specifications]: 11 in
• Length - Drains [Specifications]: 11 in
• Wheel Load Rating [Specifications]: Class C
• Material of Construction - Drains [Specifications]: Plastic
• Grate Size: 11 x 11
• Load Rating: C supports medium truck traffic (not forklift rated)
• Depth: 5
• Pipe Compatibility: 3 Schedule 40, 4 SDR35, and 6 ASTM3034
• Material: Injection-molded, UV-stabilized, and non-corrosive polypropylene
• Model: AD1
• Grate Type: ADA-Compliant, Secured with Screws
• Drain Material: Plastic
• Application: Drain
• Brand: TUF-TITE
• Category: Home & Garden
