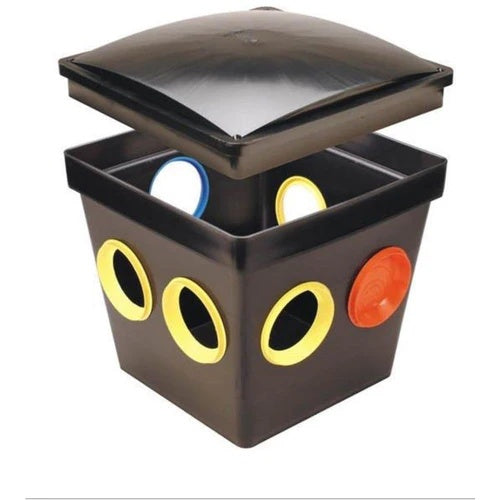

Tuf-tite 7HD2 W/4-s35,5-p10 7-outlet Distribution Box

Product Description

The TUF-TITE 7HD2 w/4-S35,5-P10 is a 7-outlet polyethylene distribution box designed for use in septic and drain field systems. It distributes effluent flow from a septic tank or pump chamber to multiple lateral lines in a leach field. The box ships with 4 seals and 5 plugs, giving the installer hardware to seal unused outlets and maintain a watertight connection at active ports. Licensed septic system installers and plumbers are the primary trade for this component.

This distribution box is used in residential and light commercial subsurface drain field installations. It serves as the central hub where a single inlet line splits to multiple outlet laterals. The included seals and plugs allow flexible field configuration, letting the installer activate only the outlets required by the system design while capping the rest. It is suited for new construction drain field layouts as well as replacement of failed or damaged distribution boxes during system rehabilitation.

Key Features

• 7 outlets provide distribution to multiple leach field laterals from a single inlet
• Polyethylene construction resists corrosion, soil chemicals, and long-term ground moisture
• Includes 4 S35 seals for watertight outlet connections
• Includes 5 P10 plugs to cap unused outlets in the field
• Order increment of 1 allows single-unit purchasing for service and replacement applications

Compatibility

Designed as an OEM-style replacement or new-installation distribution box for residential and light commercial septic drain field systems requiring a 7-outlet configuration.

Installation Notes

Installation is typically performed by a licensed septic system installer or plumber in accordance with local health department requirements and applicable plumbing codes. Excavate to the required depth and bed the box on level, compacted material to prevent shifting and uneven flow distribution. Seal all active outlet connections with the provided seals before backfilling, and plug any unused outlets with the included plugs. Do not backfill until the inlet and outlet pipe connections have been inspected per local permit requirements.

Technical Specifications

• Number of Outlets: 7
• Material: Polyethylene
• Included Seals: 4 (S35)
• Included Plugs: 5 (P10)
• Order Increment: 1

Standard Information

• Brand: TUF-TITE
• Manufacturer Part Number: 7HD2 w/4-S35,5-P10
