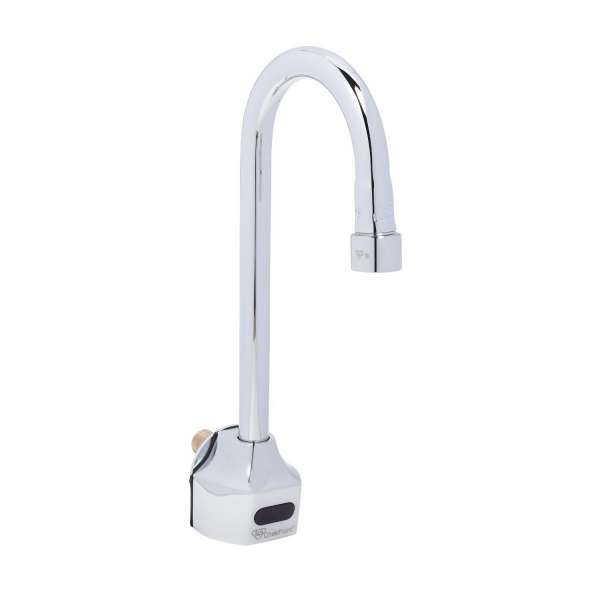

Ts Brass EC-3101TMVHGF10 Wall Mount Sensor Faucet 1.0 Gpm

Product Description

The TS BRASS EC-3101TMVHGF10 is a wall-mount electronic sensor faucet built for commercial and institutional restrooms where touchless operation, water conservation, and tamper resistance are required. The body is polished chrome plated brass with a 4.125-inch rigid gooseneck spout. Flow is fixed at 1.0 GPM through a vandal-resistant aerator. An integrated ASSE 1070-certified thermostatic mixing valve with check valves controls outlet water temperature. A hydro-generator power supply eliminates battery dependency by harvesting energy from water flow, and an AC/DC control module with internal flow-control setting switches provides flexible commissioning. Eighteen-inch flexible stainless steel supply hoses with 3/8-inch compression connections are included.

This faucet is designed for single-hole wall-mount installation in commercial lavatories, healthcare facilities, schools, and high-traffic public restrooms. The hydro-generator power supply is well suited to locations where battery access is difficult or maintenance intervals must be minimized. The ASSE 1070 thermostatic mixing valve makes it appropriate for facilities that must comply with scald-prevention codes, including healthcare and assisted-living environments where outlet temperature control is mandatory.

Key Features

• ASSE 1070 thermostatic mixing valve with integral check valves for scald protection and cross-connection prevention
• Hydro-generator power supply eliminates battery replacement — harvests energy from water flow
• AC/DC control module with internal flow-control setting switches for on-site commissioning
• 1.0 GPM vandal-resistant aerator meets EPA WaterSense flow requirements
• Polished chrome plated brass body with 4.125-inch rigid gooseneck
• 18-inch flexible stainless steel supply hoses with 3/8-inch compression connections included
• ADA-compliant per ANSI/ICC A117.1

Compatibility

Designed for single-hole wall-mount lavatory installations. Consult rough-in specifications before installation to confirm wall-cavity depth and supply line spacing are adequate for the control module and hydro-generator assembly.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and relieve line pressure before making any connections. The 3/8-inch compression supply connections must be leak-tested after startup before the faucet is placed in service. Do not overtighten compression fittings; follow the fitting manufacturer's recommended procedure. Thermostatic mixing valve temperature settings should be verified at the outlet with a calibrated thermometer after commissioning to confirm compliance with applicable scald-prevention requirements.

Technical Specifications

• Flow Rate: 1.0 GPM
• Spout Type: Rigid gooseneck
• Spout Reach: 4.125 inches
• Body Material: Chrome plated brass
• Finish: Polished chrome
• Mount Type: Single hole wall mount
• Supply Hose Length: 18 inches
• Supply Connection: 3/8-inch compression
• Supply Hose Material: Flexible stainless steel
• Power Supply: Hydro-generator (AC/DC control module)
• Aerator Type: Vandal resistant
• Temperature Control: ASSE 1070 thermostatic mixing valve with check valves
• Certifications: ASME A112.18.1/CSA B125.1, NSF 61 Section 9, NSF 372, EPA WaterSense, UL 1951, ASSE 1070, ADA/ANSI/ICC A117.1

Standard Information

• Brand: TS BRASS
• Manufacturer Part Number: EC-3101TMVHGF10
