Ts Brass B0676-54V Bedpan Washer Pedal Valve 2.2 Gpm

Product Description

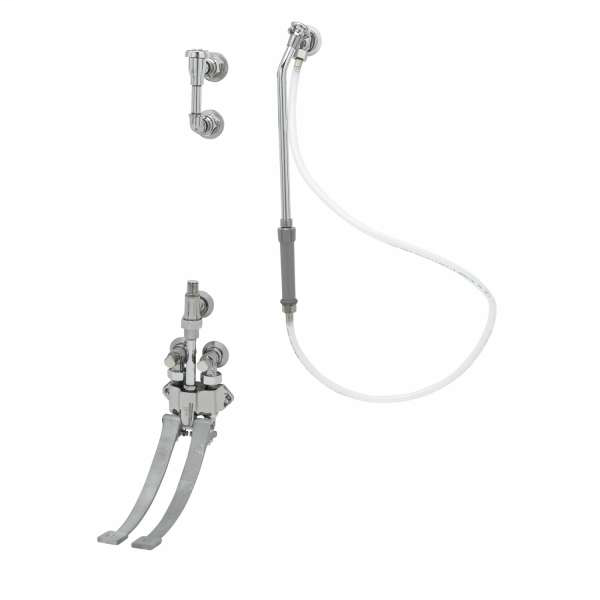

The TS BRASS B0676-54V is a wall-mount bedpan washer assembly built for clinical and institutional plumbing applications. It features a double pedal valve with 1/2 inch NPT female angled loose key stop inlets, a 3/8 inch NPT female angled loose key stop volume control outlet, and an elevated atmospheric vacuum breaker with 3/8 inch NPT female inlet and outlet. The assembly includes a 54 inch PVC hose with a heat-resistant handle, an extended nozzle rosespray rated at 2.2 GPM, and a wall hook outlet. Certified to ASME A112.18.1/CSA B125.1 and ASSE 1001, this unit is intended for licensed plumbers installing or maintaining soiled utility and sluice room fixtures in healthcare facilities.

This bedpan washer is designed for soiled utility rooms in hospitals, long-term care facilities, surgery centers, and similar clinical environments. The pedal-operated valve allows hands-free activation, which is essential for infection control in patient care settings. The elevated atmospheric vacuum breaker provides code-required backflow protection at the point of use. The 54 inch PVC hose with rosespray nozzle delivers controlled rinsing at a flow rate of 2.2 GPM.

Key Features

• Double pedal valve operation for hands-free, hygienic use in clinical settings
• Elevated atmospheric vacuum breaker certified to ASSE 1001 for backflow prevention
• 1/2 inch NPT female angled loose key stop inlets for controlled supply shutoff
• 3/8 inch NPT female angled loose key stop volume control outlet
• 54 inch PVC hose with heat-resistant handle and extended rosespray nozzle
• 2.2 GPM rosespray flow rate for effective bedpan rinsing
• Wall hook outlet with 3/8 inch NPT female inlet for organized hose storage

Compatibility

Designed as an OEM-style wall-mount bedpan washer for soiled utility and sluice room installations requiring pedal valve operation and integrated atmospheric vacuum breaker backflow protection.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and ASSE 1001 backflow prevention requirements. Shut off the water supply to the service branch before beginning installation or service. Verify that supply line pressure is within the rated range for the valve assembly before commissioning. The vacuum breaker must be mounted at the required elevation above the flood level rim per applicable code.

Technical Specifications

• Inlet Connection: 1/2 inch NPT female angled loose key stop
• Volume Control Outlet: 3/8 inch NPT female angled loose key stop
• Vacuum Breaker Inlet/Outlet: 3/8 inch NPT female
• Wall Hook Outlet Inlet: 3/8 inch NPT female
• Hose Length: 54 inches
• Hose Material: PVC
• Flow Rate: 2.2 GPM
• Spray Type: Rosespray with extended nozzle
• Certifications: ASME A112.18.1/CSA B125.1, ASSE 1001

Standard Information

• Brand: TS BRASS
• Manufacturer Part Number: B0676-54V
