Ts Brass B-2866-05FC-CR Medical Faucet 8 Inch Centers

Product Description

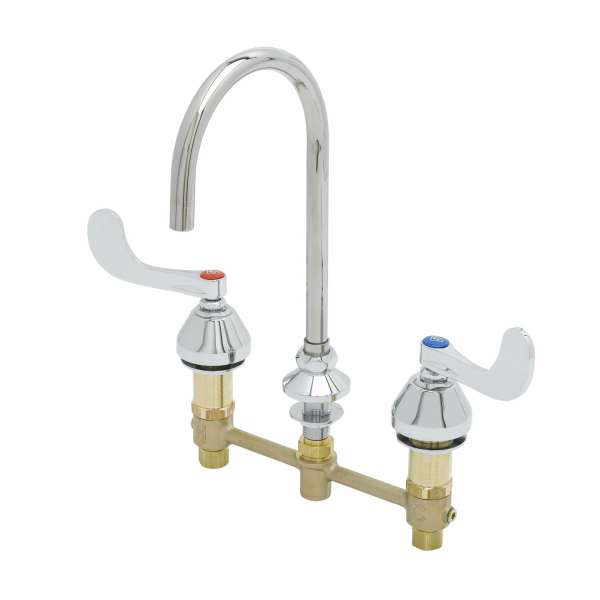

The TS BRASS B-2866-05FC-CR is an 8-inch center deck-mount lavatory mixing faucet built for medical and clinical environments. The body is forged brass with a chrome-plated finish. A 5 11/16-inch swivel and rigid gooseneck with a plain-end outlet delivers controlled flow through a 1.5 GPM flow control device. Ceramic cartridges with integral check valves provide long service life and backflow protection. Wrist-action handles allow hands-free operation in compliance with infection control practices. Inlets are 1/2-inch NPT male with coupling nuts for straightforward connection to standard supply lines.

This faucet is designed for deck-mount installation in medical facilities, clinics, laboratories, and healthcare settings where hygienic operation and code compliance are required. The 4-inch wrist-action handles allow elbow or wrist operation without hand contact, a standard requirement in sterile and semi-sterile environments. Chrome-plated escutcheons provide a clean, professional finish suited to both new construction and retrofit installations on standard 8-inch center sink decks.

Key Features

• Forged brass body with chrome-plated finish for corrosion resistance and durability
• 1.5 GPM flow control device for water conservation compliance
• Ceramic cartridges with check valves for reliable shutoff and backflow prevention
• 5 11/16-inch gooseneck with swivel and rigid options and plain-end outlet
• 4-inch wrist-action handles for hands-free hygienic operation
• 1/2-inch NPT male inlets with coupling nuts for standard supply connections

Compatibility

Designed for deck-mount installation on sinks with 8-inch center drilling. Fits standard 1/2-inch NPT supply connections typical of medical and commercial lavatory applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and ASME A112.18.1 standards. Shut off the water supply and depressurize the lines before beginning work. Inspect the deck surface for proper 8-inch center hole spacing before mounting. Do not overtighten the coupling nuts on the NPT inlets, as this can damage the brass fittings.

Technical Specifications

• Center Spacing: 8 inches
• Flow Rate: 1.5 GPM
• Gooseneck Height: 5 11/16 inches (swivel and rigid)
• Outlet Type: Plain-end
• Handle Type: Wrist-action, 4 inches
• Inlet Connection: 1/2-inch NPT male with coupling nuts
• Body Material: Forged brass
• Finish: Chrome-plated
• Cartridge Type: Ceramic with check valves
• Certifications: ASME A112.18.1/CSA B125.1, NSF 61 Section 9, NSF 372, ADA ANSI/ICC A117.1

Standard Information

• Brand: TS BRASS
• Manufacturer Part Number: B-2866-05FC-CR
