Ts Brass B-2855 Lavatory Faucet 8 Inch Centers 2.2 Gpm

Product Description

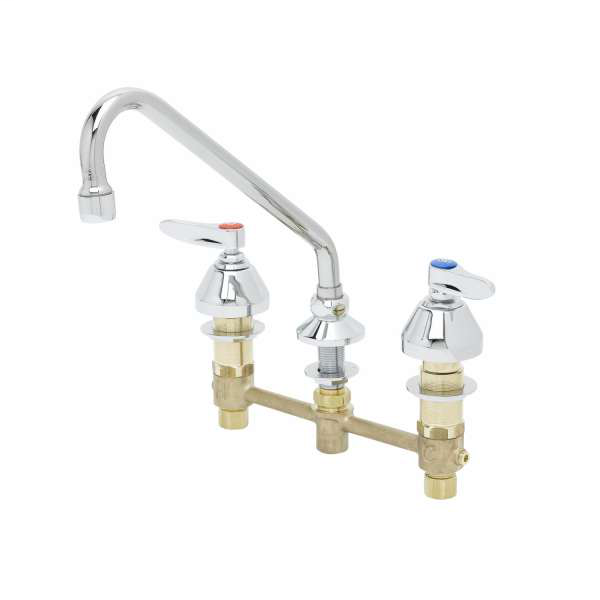

The TS BRASS B-2855 is a concealed deck-mount lavatory mixing faucet built for commercial restroom applications. The body is forged brass with a chrome-plated finish and mounts on 8-inch centers. A 9-inch swing nozzle with a 2.2 GPM aerator controls flow, while compression cartridges with spring checks provide durable, serviceable valve action. Lever handles meet ADA requirements under ANSI/ICC A117.1. Inlets are 1/2-inch NPT male with coupling nuts for straightforward supply connection. Licensed plumbers and commercial facility technicians are the primary installers.

This faucet is designed for commercial or institutional lavatory sink installations where a concealed body deck-mount configuration is required. The 8-inch center spread suits standard commercial deck-mount sink cutouts. The 9-inch swing nozzle provides flexible positioning over the basin. Chrome-plated escutcheons cover the deck penetrations for a clean finished appearance. The 2.2 GPM flow rate complies with common commercial water-efficiency requirements. It is appropriate for healthcare, hospitality, and education facilities where ADA-compliant controls and certified lead-free construction are specified.

Key Features

• Forged brass body with chrome-plated finish for corrosion resistance in wet commercial environments
• Concealed deck-mount design on 8-inch centers with chrome-plated escutcheons
• 9-inch swing nozzle with 2.2 GPM aerator
• Compression cartridges with spring checks for reliable shut-off and long service life
• ADA-compliant lever handles per ANSI/ICC A117.1
• 1/2-inch NPT male inlets with coupling nuts for standard supply connections
• Certified to ASME A112.18.1/CSA B125.1, NSF/ANSI 61-Section 9, and NSF/ANSI 372 (lead-free)

Compatibility

Designed as an OEM-style commercial lavatory faucet for deck-mount sinks with 8-inch center spread and standard 1/2-inch NPT supply connections.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and relieve line pressure before beginning work. Compression cartridges are field-serviceable; use appropriate cartridge tools rather than pliers directly on finished surfaces to avoid chrome damage. Verify supply line sizing and pressure ratings are compatible with 1/2-inch NPT inlets before final connection.

Technical Specifications

• Faucet Centers: 8 inches
• Nozzle: 9 inch swing
• Flow Rate: 2.2 GPM
• Valve Type: Compression cartridge with spring checks
• Handle Style: Lever
• Inlet Connection: 1/2 inch NPT male with coupling nuts
• Body Material: Forged brass
• Finish: Chrome plated
• Mount Type: Concealed deck mount
• Certifications: ASME A112.18.1/CSA B125.1, NSF/ANSI 61-Section 9, NSF/ANSI 372
• ADA Compliance: ANSI/ICC A117.1

Standard Information

• Brand: TS BRASS
• Manufacturer Part Number: B-2855
