Ts Brass B-2347-05-LVR Medical Faucet 8 Inch Sidespray

Product Description

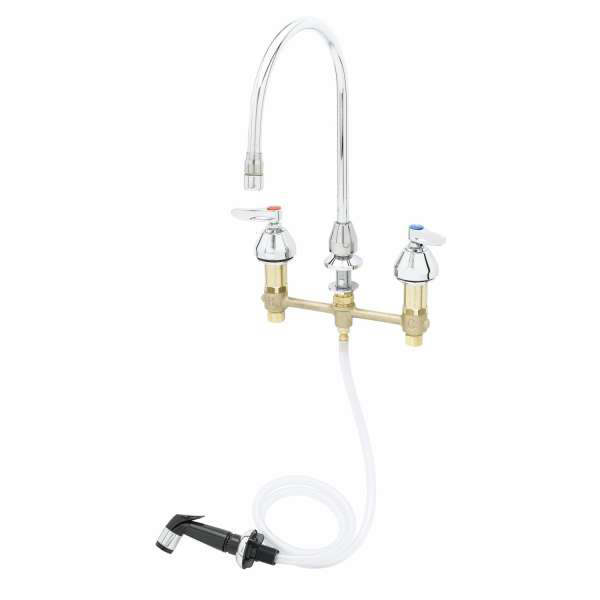

The TS BRASS B-2347-05-LVR is a concealed deck mount mixing faucet engineered for medical and clinical environments. It features an 8 and 13/16 inch swivel gooseneck with a 2.2 GPM aerator, compression cartridges with spring checks, and lever handles for single-hand or wrist operation — a critical requirement in healthcare settings. Chrome plated escutcheons and 1/2 inch NPT male inlets with coupling nuts complete the deck trim. A 4-foot sidespray with hose guide is included, making the unit well suited for scrub sinks, exam rooms, and procedure areas where both primary flow and rinsing capability are needed.

This faucet is designed for concealed deck mount installation with 8 inch centers, fitting standard three-hole sink configurations common in medical facilities, laboratories, and clinical washrooms. The swivel gooseneck allows repositioning over the basin without removing hands from the valve body, supporting infection-control workflows. Licensed plumbers and medical facility maintenance technicians handle installation and service on this type of fixture.

Key Features

• 8 and 13/16 inch swivel gooseneck with 2.2 GPM aerator for controlled flow
• Compression cartridges with spring checks for reliable shutoff and backflow resistance
• Lever handles designed to meet ADA ANSI/ICC A117.1 accessibility requirements
• Chrome plated escutcheons for a clean deck finish over concealed supply lines
• 1/2 inch NPT male inlets with coupling nuts for direct connection to standard supply lines
• 4-foot sidespray with hose guide included for supplemental rinsing

Compatibility

Designed for concealed deck mount installation on 8 inch center three-hole sinks in medical, clinical, and laboratory environments. Inlet connections are 1/2 inch NPT male, compatible with standard copper or braided supply line fittings.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and ASME A112.18.1 standards. Shut off the hot and cold supply lines and relieve line pressure before mounting or servicing the faucet. Verify that the deck thickness and cutout dimensions are compatible with the concealed body before tightening escutcheons. NSF 61 and NSF 372 certification means no additional lead-reduction filters are required at the point of use to meet potable water compliance.

Technical Specifications

• Mounting Type: Concealed deck mount
• Center Spacing: 8 inches
• Gooseneck Height: 8 and 13/16 inches swivel
• Flow Rate: 2.2 GPM (aerator)
• Inlet Connection: 1/2 inch NPT male with coupling nuts
• Handle Type: Lever
• Sidespray Hose Length: 4 feet
• Finish: Chrome plated
• Certifications: ASME A112.18.1/CSA B125.1, NSF 61 Section 9, NSF 372, ADA ANSI/ICC A117.1

Standard Information

• Brand: TS BRASS
• Manufacturer Part Number: B-2347-05-LVR
