Ts Brass B-0890-VF05 Deck Mount Lavatory Faucet 0.5 Gpm

Product Description

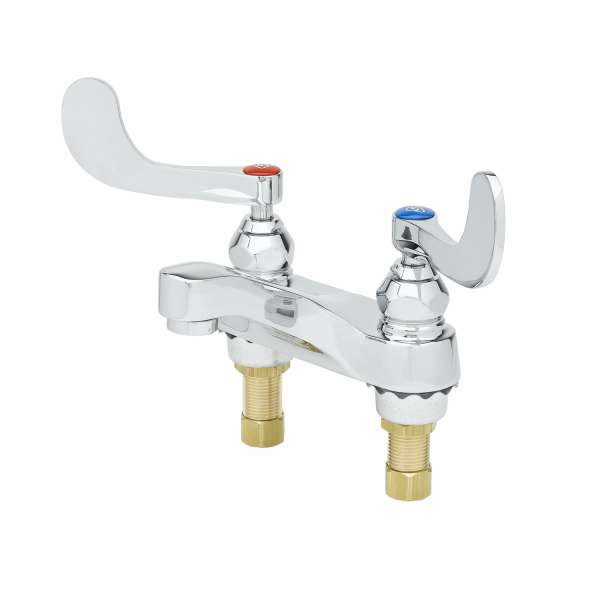

The TS BRASS B-0890-VF05 is a 4-inch centerset deck mount mixing faucet built for high-traffic, abuse-prone environments. The body is polished chrome-plated brass with an integral spout. Flow is controlled by a 0.5 GPM vandal-resistant non-aerated spray device. Compression cartridges with spring checks provide reliable shutoff and long service life. Inlets are 1/2-inch NPSM male. Certified to ASME A112.18.1/CSA B125.1, NSF 61 Section 9, and NSF 372, and the unit meets ADA ANSI/ICC A117.1 requirements. Licensed plumbers and commercial facility maintenance crews are the typical installers.

This faucet is designed for commercial or institutional lavatory applications where vandal resistance and water conservation are priorities. Typical settings include correctional facilities, schools, healthcare facilities, and public restrooms. The 4-inch wrist action handles allow operation without hand contact on the handle knob, meeting ADA lever-operation requirements. The vandal-resistant screws and low-flow spray device make it well-suited for any public-access sink installation where fixture durability and code compliance are required.

Key Features

• 0.5 GPM vandal-resistant non-aerated spray device for water conservation and tamper resistance
• Polished chrome-plated brass body with integral spout for durability and cleanability
• Compression cartridges with spring checks for positive shutoff and long service life
• 4-inch wrist action handles for ADA-compliant, no-touch-knob operation
• Vandal-resistant screws throughout to deter unauthorized disassembly
• 1/2-inch NPSM male inlets for standard rough-in compatibility

Compatibility

Designed as an OEM-style deck mount lavatory faucet for 4-inch centerset installations in commercial and institutional sink applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the IPC. Shut off the water supply and relieve line pressure before beginning work. The 1/2-inch NPSM male inlets require compatible supply connections — verify fitting thread type before installation. Do not overtighten the vandal-resistant screws; use the appropriate tamper-resistant driver bit to avoid stripping.

Technical Specifications

• Mount Type: Deck mount centerset
• Center Set Size: 4 inches
• Flow Rate: 0.5 GPM
• Spray Device: Vandal-resistant non-aerated spray
• Cartridge Type: Compression with spring checks
• Inlet Connection: 1/2-inch NPSM male
• Handle Type: 4-inch wrist action
• Body Material: Chrome-plated brass
• Certifications: ASME A112.18.1/CSA B125.1, NSF 61 Section 9, NSF 372, ADA ANSI/ICC A117.1

Standard Information

• Brand: TS BRASS
• Manufacturer Part Number: B-0890-VF05
