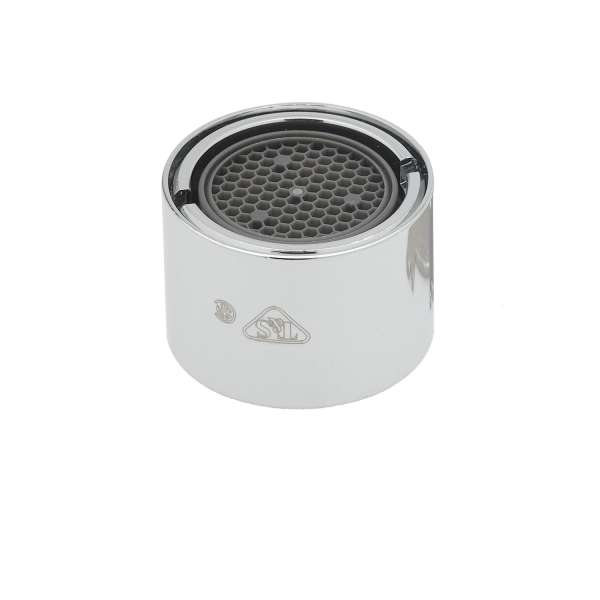

Ts Brass B-0199-21 Laminar Flow Outlet 2.2 Gpm

Product Description

The TS BRASS B-0199-21 is a laminar flow outlet designed for commercial and institutional plumbing fixtures where a smooth, non-aerating stream is required. The device delivers a controlled flow rate of 2.2 gallons per minute through a polished chrome plated brass body, threading into fixtures via a 55/64-27 UN female thread connection. Laminar flow outlets produce a clear, glass-like water column rather than a foamy aerated stream, making them well-suited for eyewash stations, drinking fountains, scrub sinks, and healthcare hand-washing applications. Licensed plumbers and facility maintenance technicians install this fitting as a faucet spout insert or aerator replacement.

This outlet is used in commercial, institutional, and healthcare plumbing environments where water clarity and consistent flow are critical. Typical applications include hospital scrub sinks, laboratory faucets, drinking fountain spouts, and any fixture where aeration is undesirable due to splash control or infection-prevention requirements. The 2.2 GPM flow rate meets standard conservation thresholds while maintaining adequate stream performance. The polished chrome finish matches standard commercial fixture trims.

Key Features

• Laminar flow design produces a clear, non-aerated water stream for splash-free delivery
• 2.2 GPM flow rate meets common water conservation requirements
• Polished chrome plated brass body for durability and finish compatibility with commercial fixtures
• 55/64-27 UN female thread for direct installation into standard faucet spout outlets
• Certified to ASME A112.18.1/CSA B125.1 for plumbing fittings performance
• NSF 61 Section 9 and NSF 372 certified for lead-free compliance and drinking water safety

Compatibility

Designed as an OEM-style replacement or upgrade laminar flow insert for commercial faucets and fixtures accepting a 55/64-27 UN female thread aerator or flow outlet.

Installation Notes

Installation is performed by a licensed plumber or qualified maintenance technician. Shut off water supply to the fixture before removing the existing aerator or spout insert. Hand-thread the B-0199-21 into the spout outlet and snug with a strap wrench to avoid marring the chrome finish — do not use serrated-jaw pliers directly on the body. Verify flow rate and check for leaks at the thread connection after restoring water supply.

Technical Specifications

• Flow Rate: 2.2 GPM
• Thread Size: 55/64-27 UN Female
• Body Material: Brass with Polished Chrome Plating
• Certifications: ASME A112.18.1/CSA B125.1, NSF 61 Section 9, NSF 372

Standard Information

• Brand: TS BRASS
• Manufacturer Part Number: B-0199-21
