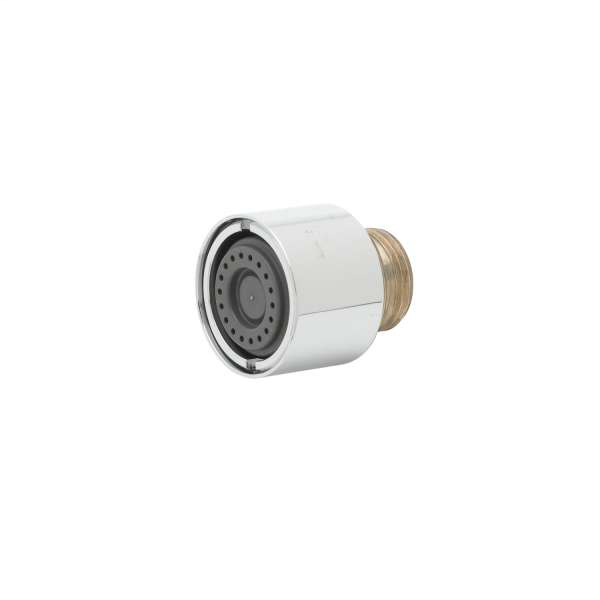

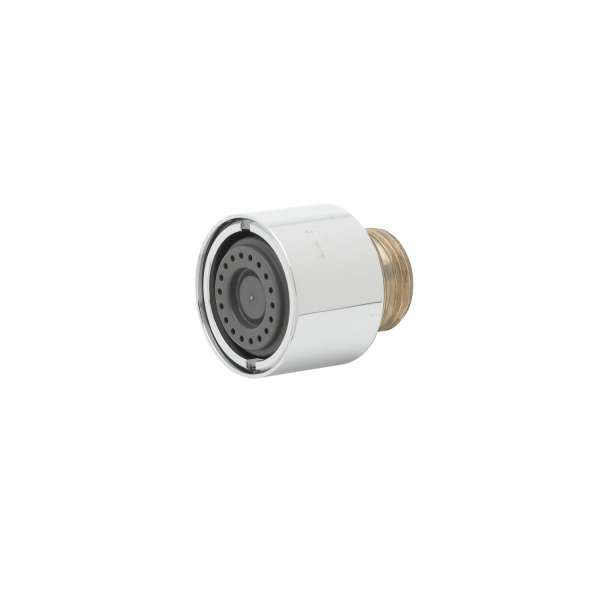

Ts Brass B-0199-07-N05 Vandal-resistant Spray Device 0.5 Gpm

Product Description

The TS BRASS B-0199-07-N05 is a non-aerated, vandal-resistant spray device rated at 0.5 GPM, designed for institutional and commercial plumbing fixtures where durability and flow control are critical. The body and adapter are constructed from polished chrome-plated brass, providing corrosion resistance in high-use environments. With 3/8 inch NPSM male threads, the device installs directly onto compatible faucet or fixture outlets. It meets ASME A112.18.1/CSA B125.1 standards and carries NSF 61-Section 9 and NSF 372 certifications, confirming suitability for potable water contact and lead-free compliance. Licensed plumbers and commercial fixture installers are the primary trades for this component.

This spray device is intended for commercial and institutional plumbing applications where standard aerators are vulnerable to tampering or removal. Typical install locations include correctional facilities, public restrooms, schools, healthcare facilities, and similar high-traffic environments. The non-aerated spray pattern delivers a consistent, laminar flow without the aeration components that are often targeted in vandal-prone settings. The 3/8 inch NPSM male thread connection suits a range of institutional-grade faucet bodies commonly found in these environments.

Key Features

• 0.5 GPM flow rate for low-consumption, controlled delivery
• Non-aerated spray pattern resists tampering and clogging
• Polished chrome-plated brass body and adapter for corrosion resistance
• 3/8 inch NPSM male thread connection for direct fixture installation
• Certified to ASME A112.18.1/CSA B125.1 for fixture fitting performance
• NSF 61-Section 9 and NSF 372 certified for potable water and lead-free compliance

Compatibility

Designed as an OEM-style replacement or upgrade spray device for commercial and institutional faucet fixtures with 3/8 inch NPSM female outlet connections.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the IPC. Shut off the water supply to the fixture before removing the existing outlet device or aerator. Use an appropriately sized wrench and thread-seal tape on the NPSM male threads to ensure a leak-free connection. Do not overtighten, as chrome-plated brass fittings can be damaged by excessive force.

Technical Specifications

• Flow Rate: 0.5 GPM
• Thread Size: 3/8 inch NPSM Male
• Spray Type: Non-Aerated
• Body Material: Chrome-Plated Brass
• Certifications: ASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF 372

Standard Information

• Brand: TS BRASS
• Manufacturer Part Number: B-0199-07-N05
