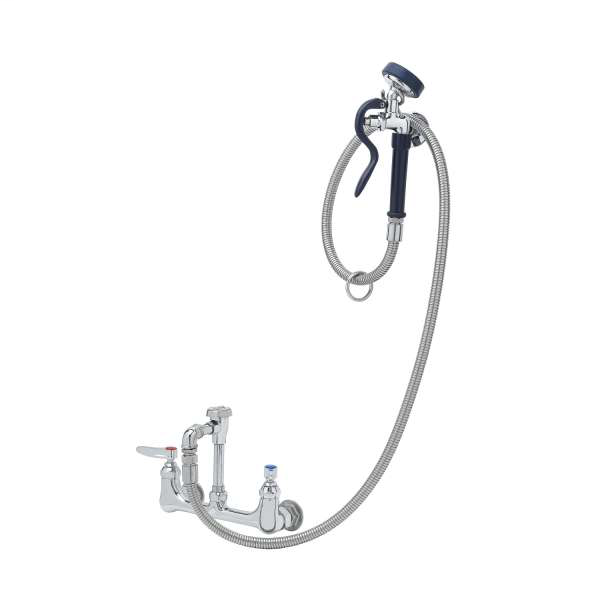

Ts Brass B-0167-02 Wall Mount Mixing Faucet 8 Inch

Product Description

The TS BRASS B-0167-02 is an 8-inch wall mount mixing faucet built for commercial and institutional plumbing applications. The body is polished chrome plated brass and includes a built-in vacuum breaker to meet backflow prevention requirements. It ships as a complete assembly: a 72-inch flexible stainless steel hose with a heat-resistant handle, a high-flow angled spray valve, and a wall hook for hose storage. Compression cartridges with spring checks and lever handles provide durable, easy operation. Inlets are 1/2-inch NPT female for straightforward connection to standard supply lines. The unit is certified to ASME A112.18.1/CSA B125.1, NSF 61 Section 9, NSF 372, and ASSE 1001.

The B-0167-02 is suited for mop sinks, service sinks, laundry rooms, commercial kitchens, and institutional utility areas where a wall-mounted, hose-equipped faucet is required. The 72-inch stainless steel flex hose provides extended reach for sink rinse-down and general washdown tasks. The angled spray valve delivers high-flow performance for efficient cleaning. This faucet is typically installed by a licensed plumber in new construction or renovation projects where wall rough-in supply lines are already in place.

Key Features

• Polished chrome plated brass body for corrosion resistance in wet commercial environments
• Built-in vacuum breaker meets ASSE 1001 backflow prevention requirements
• 72-inch flexible stainless steel hose with heat-resistant handle for extended reach
• High-flow angled spray valve for efficient washdown performance
• Compression cartridges with spring checks and lever handles for reliable shut-off and control
• 1/2-inch NPT female inlets for standard supply line connection
• Wall hook included for organized hose storage

Compatibility

The B-0167-02 assembly references companion components B-0968, EB-0072-H flex hose, EB-0107-035 spray valve, and B-0166 wall hook. Designed as a wall mount mixing faucet for commercial and institutional sink installations with standard 1/2-inch NPT hot and cold supply rough-in.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the IPC. Shut off the hot and cold water supply and relieve line pressure before beginning work. Verify wall rough-in centers match the 8-inch spread of this faucet prior to mounting. Do not overtighten the NPT inlet connections; use thread sealant tape rated for potable water systems.

Technical Specifications

• Wall Spread: 8 inches
• Inlet Connection: 1/2 inches NPT female
• Body Material: Chrome plated brass
• Finish: Polished chrome
• Hose Length: 72 inches
• Hose Material: Flexible stainless steel
• Cartridge Type: Compression with spring checks
• Handle Style: Lever
• Certifications: ASME A112.18.1/CSA B125.1, NSF 61 Section 9, NSF 372, ASSE 1001

Standard Information

• Brand: TS BRASS
• Manufacturer Part Number: B-0167-02
