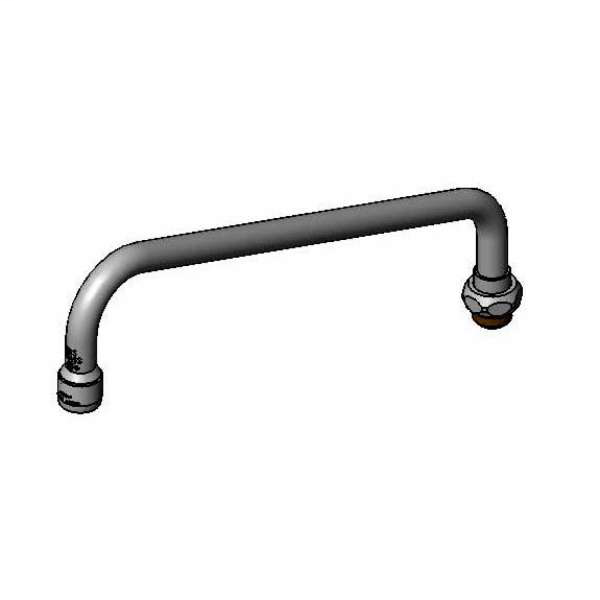

Ts Brass 062X-A12 Swing Nozzle 1.2 Gpm Aerator 12 Inches

Product Description

The TS BRASS 062X-A12 is a swing nozzle with a 1.2 GPM aerator designed for commercial and institutional plumbing applications. At 12 inches in length with 3-15/16 inches of clearance, it provides adequate reach and basin clearance for a wide range of sink configurations. The aerator limits flow to 1.2 gallons per minute, supporting water conservation requirements in facilities where low-flow compliance is mandatory. Licensed plumbers and facility maintenance professionals install this fitting as part of faucet assemblies in kitchens, janitor rooms, and service areas. It meets ASME A112.18.1/CSA B125.1, NSF 61-Section 9, and NSF 372 certifications.

This swing nozzle is suited for commercial food service, healthcare, and institutional environments where a swivel spout with a low-flow aerator is required. The 12-inch length accommodates deeper sinks or multi-basin configurations, and the swing action allows the nozzle to be repositioned between basins without tools. The 1.2 GPM flow rate satisfies low-flow fixture requirements common in water-efficiency programs and green building standards.

Key Features

• 1.2 GPM aerator for low-flow water conservation compliance
• 12-inch nozzle length for extended reach over deep or wide sinks
• 3-15/16 inches of clearance for standard basin fitment
• Swing action allows repositioning between sink basins
• Certified to ASME A112.18.1/CSA B125.1 for plumbing fixture fittings
• NSF 61-Section 9 and NSF 372 certified for lead content and drinking water safety

Compatibility

Designed as an OEM-style replacement or upgrade nozzle for commercial faucet bodies accepting a swing spout fitting of equivalent length and clearance specifications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the IPC. Shut off the water supply and relieve line pressure before removing the existing nozzle or aerator assembly. Use appropriate thread tape or sealant on threaded connections as required by the fitting type. Do not overtighten the aerator insert, as this can damage the threads or aerator screen.

Technical Specifications

• Flow Rate: 1.2 GPM
• Nozzle Length: 12 inches
• Clearance: 3-15/16 inches
• Certifications: ASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF 372

Standard Information

• Brand: TS BRASS
• Manufacturer Part Number: 062X-A12
