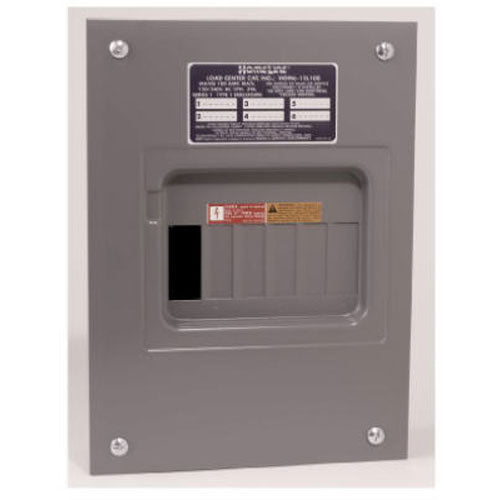

TRUE VALUE HOM612L100FCP 100A Main Lugs Load Center Flush Mount 6 Space Circuit 12 single Poles

Product Description

The TRUE VALUE HOM612L100FCP is a 100 Amp main lugs load center suitable for both residential and commercial applications. This flush mount panel features a six space design that accommodates twelve single pole circuit breakers. The load center is equipped with a plated aluminum bus bar and is UL listed, ensuring reliable performance for power distribution.

• Includes a flush mount cover without a door for ease of access.
• Compatible with plug-on secondary surge arrestors (sold separately).
• Designed for overhead or underground feed installation.

Product Highlights

This load center is engineered for effective installation and wire management, making it an ideal option for contractors and builders.

Product Information

Standard Information

• Brand: TRUE VALUE
• MPN: HOM612L100FCP

Technical Specifications

• Amperage: 100A
• Number of Spaces: 6
• Number of Circuits: 12 single poles
• Type: Flush mount
• Construction: Thermoplastic interior assembly
• Weight: 7.6 lbs
• Dimensions: 14.9x10.5x4.3 inches
