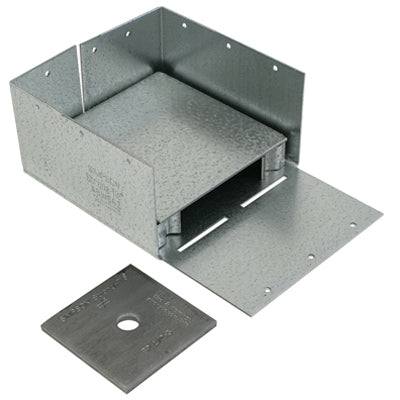

True Value ABW66Z ADJ POST BASE

Product Description

The True Value ABW66Z Adjustable Post Base is designed to provide stable support for posts and columns. This post base features a one-inch standoff height above concrete floors, which helps to reduce the risk of decay at the post and column ends. It can effectively handle uplift loads, making it suitable for various construction applications.

• Nominal post size of six inches by six inches
• Constructed from twelve-gauge steel for durability
• Galvanized finish for added corrosion resistance

Product Highlights

The ABW66Z is ideal for outdoor applications where moisture may cause deterioration. It can be installed using a half-inch anchor bolt and twelve ten-penny common nails or #9 by one and a half-inch strong drive screws.

Product Information

Standard Information

• Brand: True Value
• MPN: ABW66Z

Technical Specifications

• Standoff Height: 1 inch
• Post Size: 6 inches x 6 inches
• Base Thickness: 12 gauge
• Strap Thickness: 14 gauge
• Fastener Type: 1/2 inch anchor bolt, twelve 10D nails, or #9 x 1.5 inch screws
