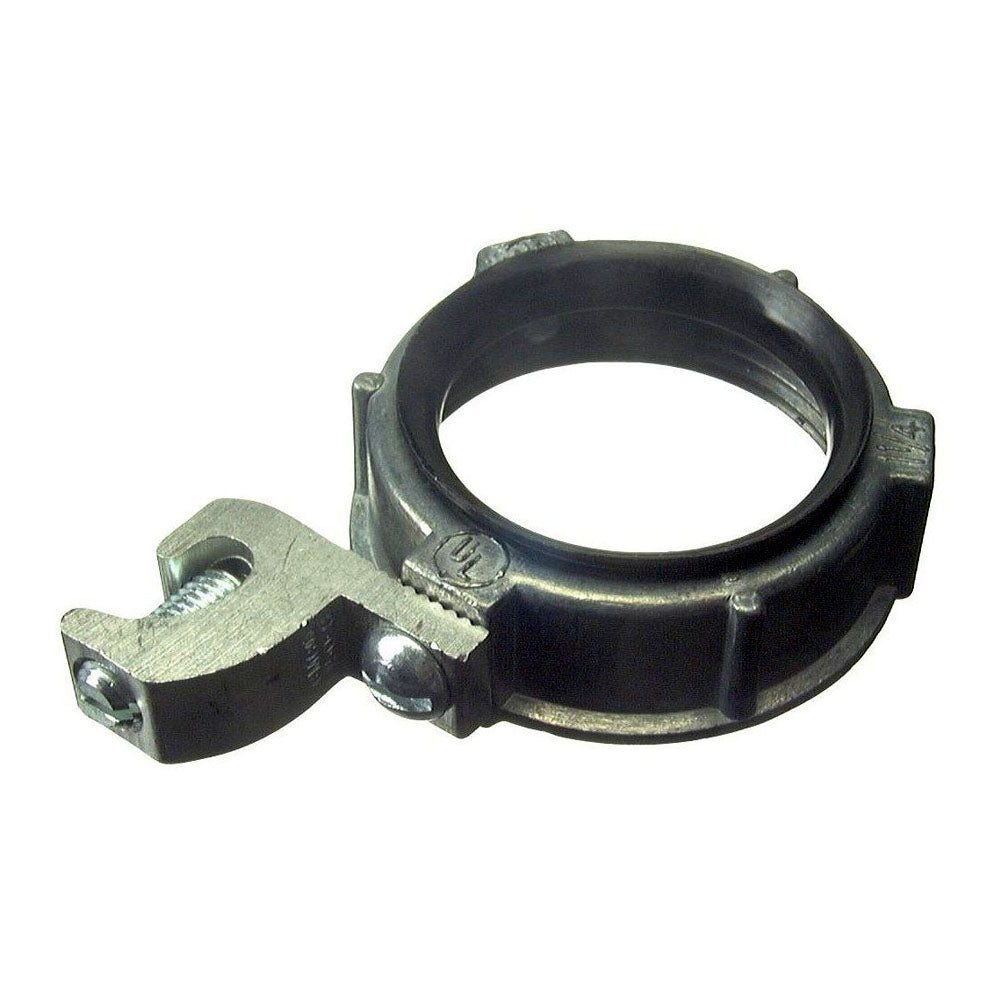

TRUE VALUE 99526 2-Inch Insulated Metallic Grounding Bushing

Product Description

The TRUE VALUE 2-Inch Insulated Metallic Grounding Bushing, MPN 99526, is designed for secure electrical grounding in conduit systems. This grounding bushing features a tin-plated open-type lug suited for both copper and aluminum conductors. It includes thermoplastic liners rated at one hundred five degrees Celsius for durability. The bushing is made from die-cast zinc to provide strength and longevity.

• Compatible with dual-rated conductors.
• Facilitates secure wire or cable attachment at conduit ends.
• UL and CSA approved for safety and compliance.

Product Highlights

This grounding bushing aids in providing a smooth surface for cable connections, thus ensuring reliable grounding.

Product Information

Standard Information

• Brand: TRUE VALUE
• MPN: 99526

Technical Specifications

• Material: Die-Cast Zinc
• Lug Type: Tin-Plated Open-Type
• Rating: Dual Rated for CU-AL Conductors
• Thermoplastic Liners Temperature Rating: 105 Degrees Celsius
• Dimensions: Two inches diameter
• Weight: 0.22 pounds
