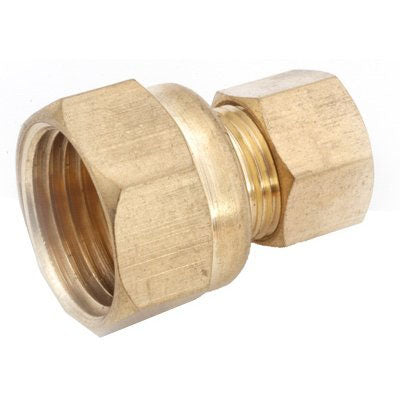

TRUE VALUE 750066-0604 3/8CMPX1/4FPT CONNECTOR

Product Description

The TRUE VALUE 750066-0604 is a 3/8 compression by 1/4 female pipe thread connector. This brass fitting is designed for reliable connections in various plumbing applications. It is compliant with public law 111-380, making it lead-free. This connector ensures a secure fit for both copper and plastic tubing.

• Lead-free compliant construction
• Temperature range from negative sixty-five degrees to plus two hundred fifty degrees Fahrenheit
• Easy assembly without the need for flaring tools

Product Highlights

This fitting is essential for water, gasoline, oil, and vacuum lines. Its simple design allows for quick disassembly and reassembly, making it a practical choice for plumbing tasks.

Product Information

Standard Information

• Fitting Type 1: Brass Female Compression
• Fitting Type 2: Coupling
• Fitting Type 3: Coupling
• Size: 3/8 x 1/4

Technical Specifications

• Maximum Temperature: 250 degrees Fahrenheit
• Minimum Temperature: -65 degrees Fahrenheit
• Primary Uses: Water, Gasoline, Oil, Vacuum Lines
• Assembly Instructions: Cut a smooth square end on tubing, slide nut and sleeve onto the tube, insert into fitting, and thread the nut onto the fitting until snug.
