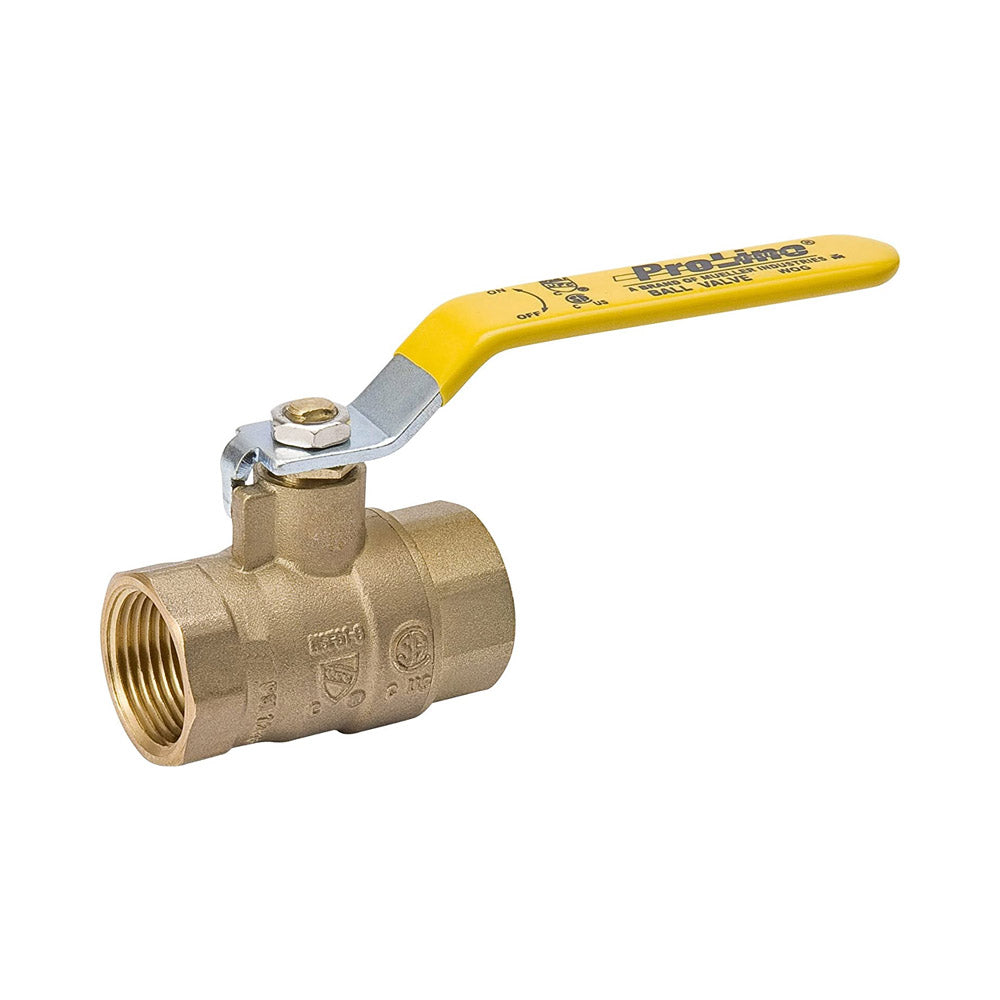

True Value 107-811NL 1/4 BRS FPT BALL VALVE

Product Description

The True Value 107-811NL is a 1/4 inch brass female pipe thread ball valve. This valve is designed for efficient flow control in various plumbing applications. It features a full port design for better flow efficiency and is lead-free for safe use. The valve operates under a pressure of up to six hundred PSI for non-shock water and one hundred fifty PSI for steam.

• Lead-free construction for safe water supply
• Full port design for maximum flow
• Temperature range from minus twenty to three hundred degrees Fahrenheit

Product Highlights

This brass ball valve is CSA certified and conforms to ANSI B1.20.1 standards. It is suitable for both hot and cold water systems and is ideal for use in residential and commercial plumbing.

Product Information

Standard Information

• Brand: True Value
• MPN: 107-811NL

Technical Specifications

• Material: Forged Brass
• Connection Type: Female Pipe Thread
• Pressure Rating: 600 PSI Non-Shock WOG
• Steam Rating: 150 PSI WSP
• Temperature Range: -20 to 300 degrees Fahrenheit
• Certification: CSA Certified
• Threaded Ends Compliance: ANSI B1.20.1
