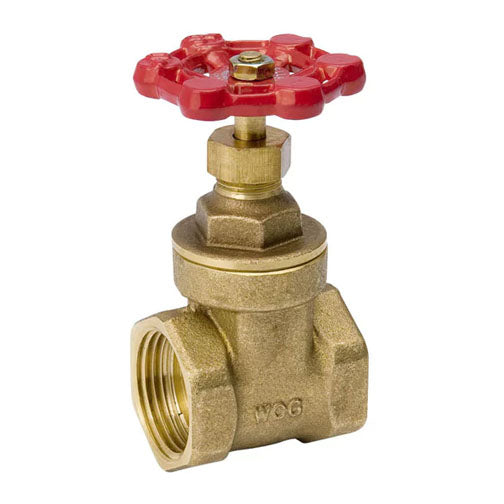

True Value 100-404NL 3/4BRS THRD Gate Valve

Product Description

The True Value 100-404NL is a three-quarter inch brass threaded gate valve. This valve is designed for high-pressure applications and can handle up to one hundred fifty PSI non-shock WOG (water, oil, gas). The valve features forged brass construction for durability and a cast iron handle for easy operation.

• Brass construction provides resistance to corrosion.
• Threaded ends comply with ANSI B1.20.1 standards.
• Compact pattern offers efficient space utilization.

Product Highlights

This gate valve is suitable for use in plumbing and heating systems. It is ideal for applications involving shut-off control in various plumbing installations.

Product Information

Standard Information

• Brand: True Value
• MPN: 100-404NL
• Part Number: TV122776

Technical Specifications

• Size: Three-quarter inch
• Material: Lead-free brass
• Pressure Rating: 150 PSI Non-Shock WOG
• Handle Material: Cast iron
• Threaded Ends: Complies with ANSI B1.20.1
• Pattern: Compact
• Weight: 0.66 pounds
• Dimensions: Length 2.25 inches, Width 3.75 inches, Height 2.25 inches
