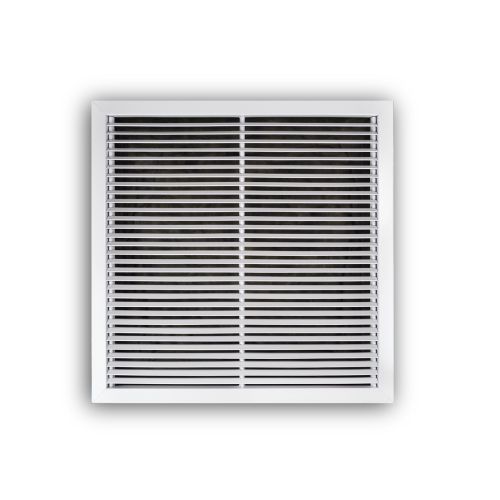

Truaire A1210RG 24 inches x 24 inches Ceiling Module, 3/4 inches Fixed Bar, 30° Blade Pitch, Aluminum, 22 inches x 22 inches Neck Grille

Product Description

The TRUAIRE A1210RG is a 24" x 24" ceiling module grille featuring a 3/4" fixed bar design with a 30° blade pitch. Constructed from aluminum, it has a 22" x 22" neck. Designed for return air applications, this grille offers versatile face designs and can be T-Bar or surface mounted.

• Versatile face designs
• T-Bar or surface mount
• Rugged steel or aluminum models

Product Highlights

This aluminum grille is designed for ceiling return air and offers both T-Bar and surface mount options.

Product Information

Standard Information

• Brand: TRUAIRE
• Manufacturer Part Number: A1210RG

Technical Specifications

• Brand: TRUaire
• Size: 24 x 24
• Color: Pristine White
• Application: Ceiling
• Fin/Blade Spacing: 0.000
• Fin Degree: 0
• Composition: Aluminum
• Curved Blade: N
• Deflection: 1-Way
• Filter Size: Not Applicable
• Market Type: Commercial
• Insulated: NO
• Screw Holes: 0
• Industry Type: Commercial
• GRD Options: - 3/4", Spacing
• Finish: Powder Coated
• GRD Material: Aluminum
• Face Style: Blades, - Bar Type, Fixed
• GRD Location: - Module Size 24" x 24"
• Airflow: Return
• Type: Return Air, T-Bar, Lay-In
• Style: Fixed Bar Face
• Grill Size: 20-7/8 Inch Wide x 20-7/8 Inch Tall
• Overall Dimensions: 23-3/4 Inch Wide x 23-3/4 Inch Tall x 3-1/4 Inch Deep
• Fin Spacing: 3/4 Inch
• Material: Aluminum
• Inclusions/Features: Molded R6 Insulated Back
• UOM: ea
