Product Description

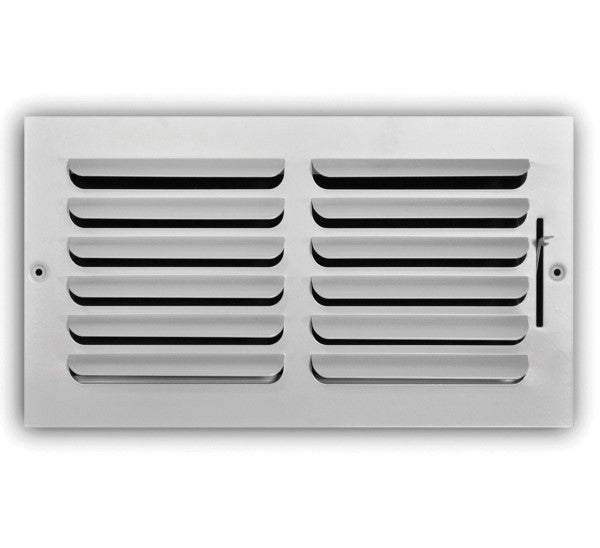

TRUaire 401M14X06 is a 1-way stamped face supply register designed for residential ceiling or sidewall openings. This unit measures 14 inches by 6 inches and offers a flow rate of 215 cubic feet per minute. Constructed from high quality steel, it features a durable pristine white powder coated finish.
- Includes SmoothGlide multi-shutter damper
- Easy installation with counter-sunk screw holes
- Individually shrink-wrapped for protection
Product Highlights
This supply register ensures efficient airflow management in HVAC systems.
Product Information
Standard Information
-
Brand: TRUaire
-
Part Number: L1849
Technical Specifications
-
Application: Residential Ceiling/Sidewall Openings
-
Blade Spacing: 1/2 inch
-
Blade Type: Horizontal Curved Fin
-
Country of Origin: Vietnam
-
Deflection Angle: 55 degrees
-
Domestic/Import: Import
-
Effective Area: 28.8 square feet
-
Finish: Pristine White Powder Coated
-
Flow Rate: 215 cfm
-
Includes: SmoothGlide Multi-Shutter Damper
-
Material: Steel
-
Overall Depth: 1-3/4 inches
-
Overall Width: 15-3/4 inches
-
Package Height: 7.75 inches
-
Package Length: 2.0 inches
-
Package Weight: 2.0 pounds
-
Package Width: 15.75 inches
-
Series: 401M
-
Size: 14 x 6 inches
-
Type: 1-Way Stamped Face
