TRUaire 401M08X04 1-Way Stamped Face Supply Register 105 cfm 8 x 4 in

Product Description

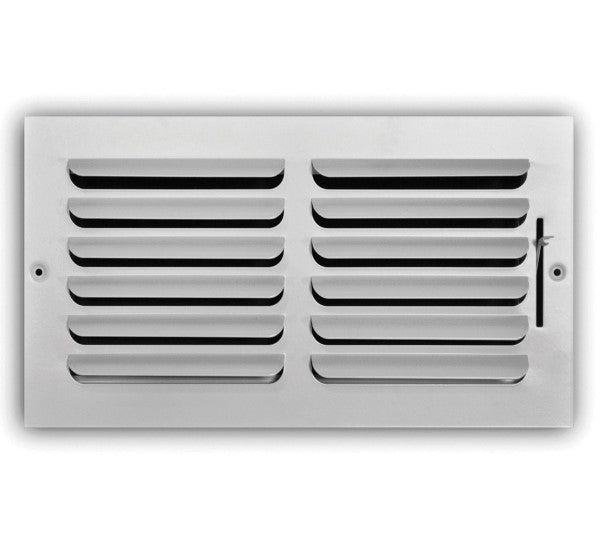

The TRUaire 401M08X04 is a 1-way stamped face supply register designed for effective air distribution in residential settings. Measuring eight inches by four inches, it delivers a flow rate of one hundred five cubic feet per minute. This supply register is made from high-quality steel with a pristine white powder-coated finish that ensures durability.

• Features counter-sunk screw holes with included hexagonal screws.
• Equipped with a single lever operated multi-louver shutter rear damper for airflow control.
• Each unit is individually shrink-wrapped for protection.

Product Highlights

The 401M series register is suitable for installation in ceiling or sidewall openings. Its design allows for smooth airflow and easy adjustments, making it ideal for home HVAC systems.

Product Information

Standard Information

• Brand: TRUaire
• MPN: 401M08X04

Technical Specifications

• Application: Residential Ceiling/Sidewall Openings
• Blade Spacing: 1/2 inch
• Blade Type: Horizontal Curved Fin
• Country of Origin: VN
• Deflection Angle: 55 degrees
• Domestic/Import: Import
• Effective Area: 10.7 square feet
• Finish: Pristine White Powder Coated
• Flow Rate: 105 cfm
• Includes: SmoothGlide Multi-Shutter Damper
• Material: Steel
• Overall Depth: 1-3/4 inches
• Overall Width: 9-3/4 inches
• Package Height: 5.75 inches
• Package Length: 2.0 inches
• Package Weight: 1.0 lbs
• Package Width: 9.75 inches
• Series: 401M
• Size: 8 x 4 inches
• Type: 1-Way Stamped Face
