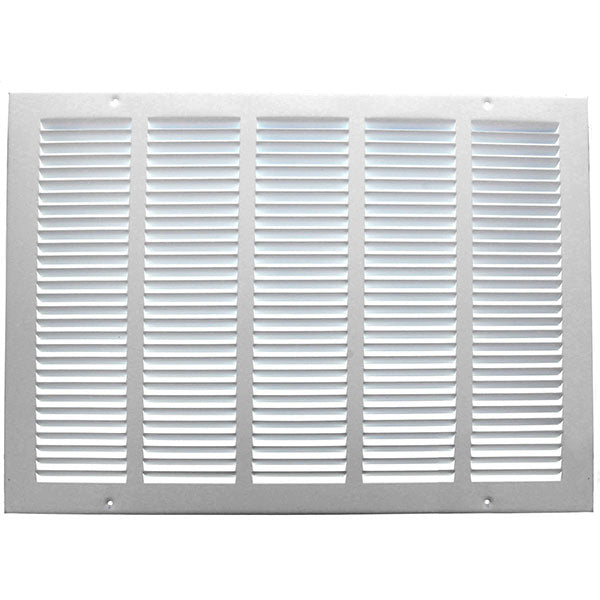

TRUaire 17030X20 1-Way Stamped Face Return Air Grille 30 in W x 20 in H 810 to 1884 cfm

Product Description

TRUaire 17030X20 is a return air grille designed for efficient airflow. This 1-way stamped face grille measures thirty inches wide by twenty inches high and is a quarter-inch thick. It allows for an airflow range of eight hundred to one thousand eight hundred eighty-four cubic feet per minute. Made from steel, it features a durable powder-coated finish.

• Durable white powder-coated finish
• Suitable for sidewall or ceiling installation
• Recirculates air to the furnace for heating or cooling

Product Highlights

This product is effective in returning air to the heating system where it is filtered and adjusted for temperature before redistribution.

Product Information

Standard Information

• Brand: TRUaire
• Part Number: L9989

Technical Specifications

• Blade Spacing: 1/2 in
• Deflection Angle: 55 deg
• Effective Area: 390 sq-in
• Flow Rate: 810 to 1884 cfm
• Material: Steel
• Overall Depth: 1/4 in
• Series: 170
• Size: 30 in W x 20 in H x 1/4 in Thick
• Type: 1-Way
• Country of Origin: VN
• Domestic/Import: Import
