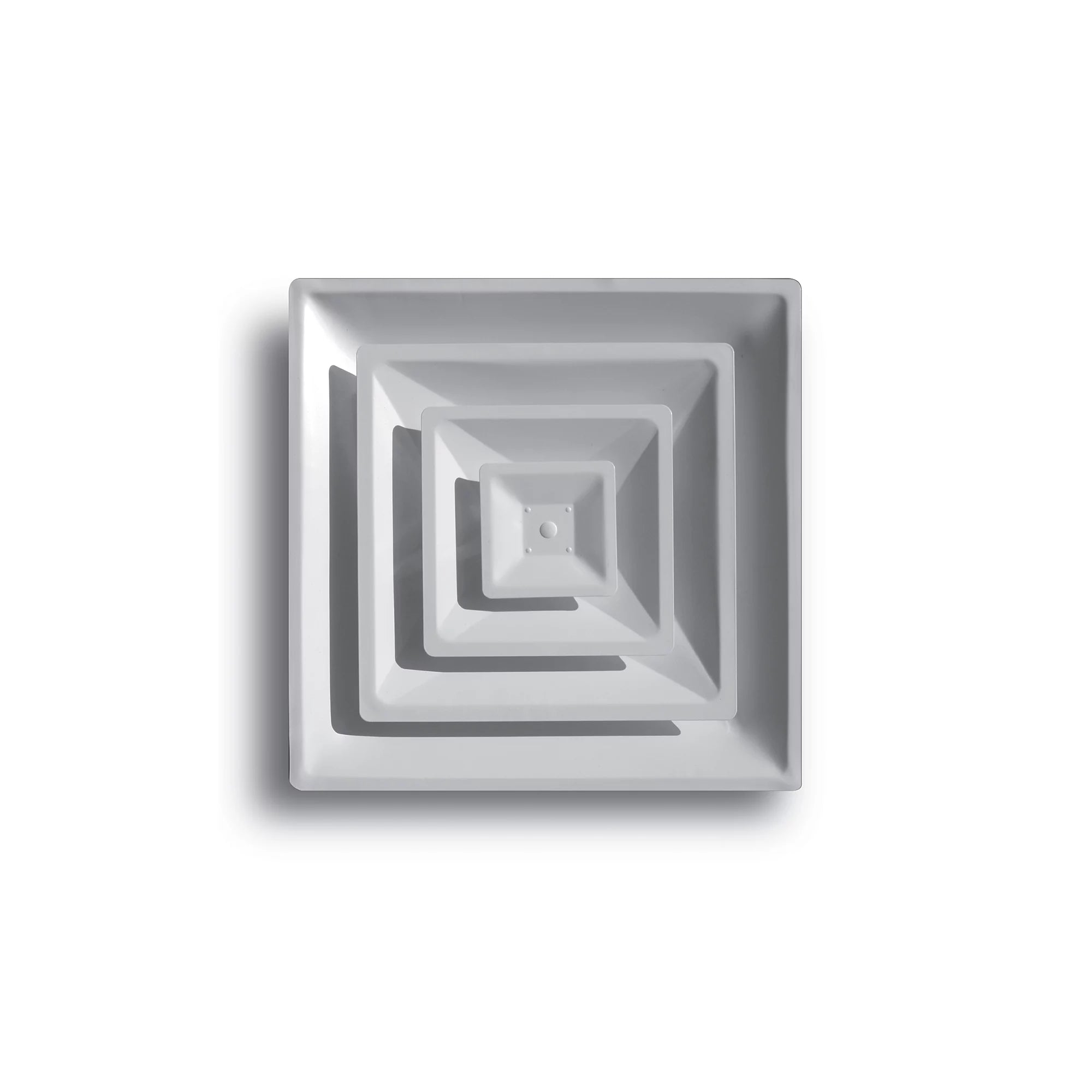

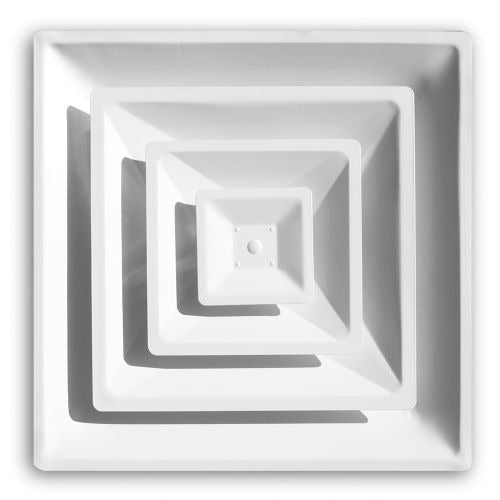

Truaire 2004CD10 T-Bar 3-Cone Diffuser (24 x 24, 10 in Collar)

Product Description

Truaire 2004CD10 is a T-bar step-down 3-cone diffuser designed for 24 x 24 inch ceiling grid openings. The unit is constructed of extra heavy gauge steel with a powder-coated white finish and features a 10 inch diameter Super-collar and 4-3/4 inch collar length. It provides 360 degree deflection and is rated at 870 CFM at 1600 FPM. Included are seismic support tabs, recessed hanging hole, and an insulation thumb-tab.

• Extra heavy gauge steel construction with powder-coated white finish; designed for T-bar lay-in installation.
• 24 x 24 inch face with 10 inch diameter Super-collar and 4.75 inch collar length for duct connection.
• 360 degree deflection (4-way) airflow distribution; rated 870 CFM at 1600 FPM; includes seismic support tabs and insulation thumb-tab.

Product Highlights

24 x 24 in T-bar 3-cone step-down diffuser with 10 in Super-collar, 360 degree deflection, and 870 CFM at 1600 FPM.

Product Information

Standard Information

• Brand: TRUAIRE
• Manufacturer Part Number: 2004CD10
• Country of Origin: Vietnam
