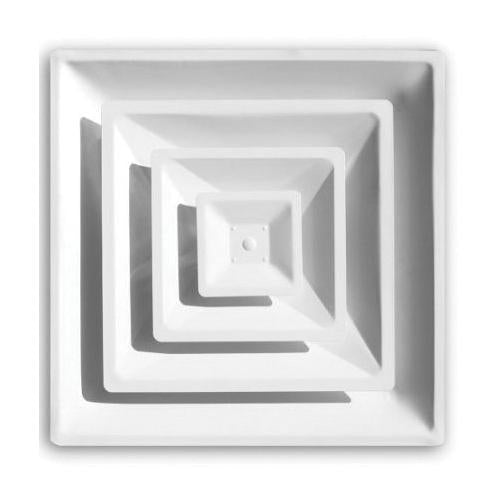

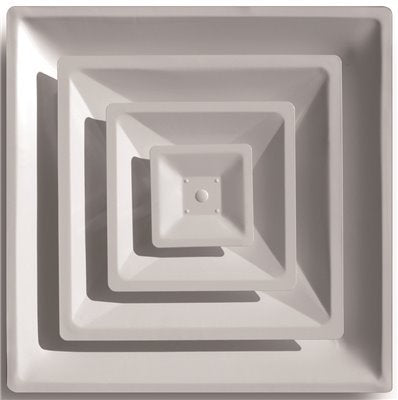

Truaire 2004CD/10 T-Bar 3-Cone Step Down Diffuser (2 feet x 2 feet)

Product Description

Truaire 2004CD/10 is a T-Bar 3-cone step-down ceiling diffuser with a 10-inch round collar designed for 2' x 2' T-bar ceilings. It provides 4-way deflection and a rated airflow of 870 cfm at 1600 fpm. Constructed from 24 gauge steel with a powder-coated finish, the unit measures 24 x 4.75 x 24 inches and includes a 2 inch tall, 22 gauge collar and seismic support tabs.

• 3-cone step-down design for 4-way deflection; rated 870 cfm at 1600 fpm
• 10 inch round collar with 2 in tall, 22 ga super-collar and solid steel bead to resist flexing
• 24 ga steel construction with powder-coated finish; designed for 2' x 2' T-bar ceiling installation; includes seismic support tabs

Product Highlights

T-Bar 3-cone step-down diffuser; 10 in collar; 24 x 4.75 x 24 in; 870 cfm at 1600 fpm; 24 ga steel, powder-coated

Product Information

Standard Information

• Brand: TRUAIRE
• Manufacturer Part Number: 2004CD/10

Technical Specifications

• Brand: Truaire
• MPN: 2004CD/10
• Series: 2004CD
• Size: 2' x 2' (24 x 24 in)
• Dimensions: 24 x 4.75 x 24 in (overall)
• Deflection Type: 4-way
• CFM Rating: 870 cfm at 1600 fpm
• Material: 24 ga steel
• Finish: Powder-coated
• Collar Diameter: 10 in
• Collar Height: 2 in
• Collar Gauge: 22 ga
• Number of Cones: 3
• Mounting Type: T-bar ceiling
• Seismic Support Tabs: Yes
• Item Weight: 8.1 lb (3674 g)
• UPC: 803492203856
• ASIN: B01N5BRHO4
• Product Category: Registers, Grilles & Vents
