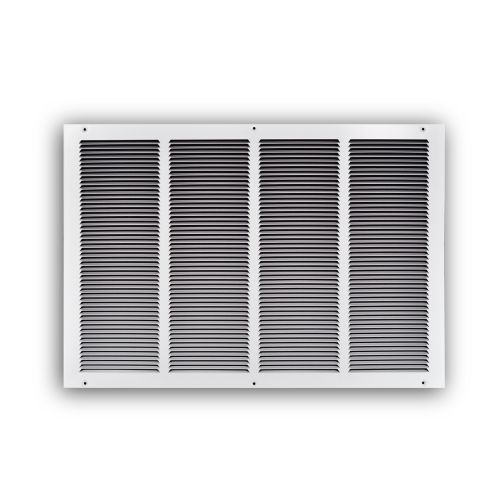

Truaire 17324X16 Grille 24 inches x 16 inches

Product Description

The TRUAIRE 17324X16 is a 24" x 16" 1-way grille made of stamped steel with 1/3" stamped louvers set at a 30° blade pitch. Designed for ceiling or sidewall applications, this rectangular grille features a pristine white powder coat finish and countersunk screw holes for easy installation. It efficiently returns air to the furnace for filtering and recirculation.

• Steel construction
• 1/3" blade spacing
• Countersunk screw holes

Product Highlights

Stamped steel grille with 1/3" louver spacing, pristine white powder coat finish, and rectangular design for residential ceiling/sidewall return air applications.

Product Information

Standard Information

• Brand: TRUAIRE
• Manufacturer Part Number: 17324X16
• Country of Origin: Import

Technical Specifications

• Brand: TRUaire
• Size: 24 x 16
• Color/Finish: Pristine White / Powder Coated
• Application: Ceiling/Sidewall
• Fin/Blade Spacing: 1/3 Inch
• Composition: Steel
• Deflection: 1-Way
• Market Type: Residential
• Insulated: NO
• Industry Type: Residential
• Finish: Powder Coated
• GRD Material: Steel
• Features: Rectangular
• Face Style: Louvered, - Formed
• Airflow: Return
• Depth: 1/4 in
• Dimensions: 24 in x 16 in
• Domestic/Import: Import
• Grate Style: Stamped
• Material: Steel
• Series: 173
• Style: Return wall
• Type: Return Air
