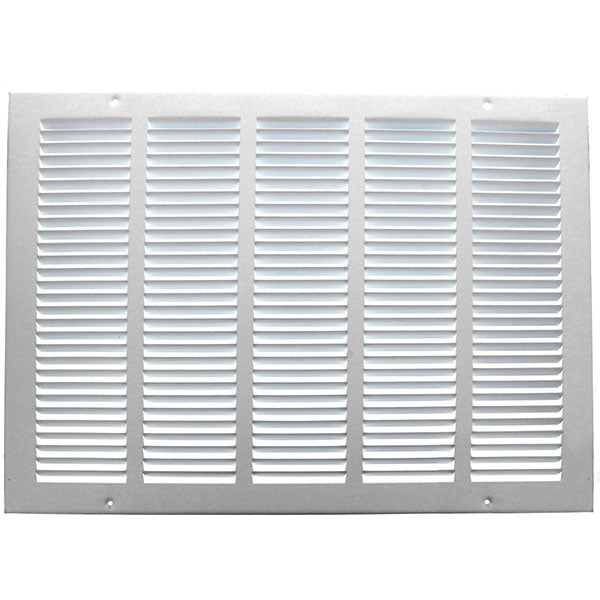

TRUaire 17030X20 1-Way Stamped Face Return Air Grille 30 in W x 20 in H x 1/4 in Thick

Product Description

The TRUaire 17030X20 is a 1-way stamped face return air grille. It is designed for efficient air distribution in HVAC systems. This grille measures thirty inches wide by twenty inches high, with a thickness of one-quarter inch. It is suitable for sidewall or ceiling applications and aids in returning air to the furnace for filtration and temperature control.

• Durable white powder coated finish
• For sidewall or ceiling applications
• Returns air to the furnace for heating or cooling

Product Highlights

This grille is built for durability and functionality, enhancing airflow in HVAC systems.

Product Information

Standard Information

• Brand: TRUaire
• Part Number: L9989

Technical Specifications

• Blade Spacing: 1/2 in
• Country of Origin: VN
• Deflection Angle: 55 deg
• Domestic/Import: Import
• Effective Area: 390 sq-in
• Finish: Powder Coated
• Flow Rate: 810 to 1884 cfm
• Material: Steel
• Overall Depth: 1/4 in
• Series: 170
• Size: 30 in W x 20 in H x 1/4 in Thick
• Type: 1-Way
