Product Description

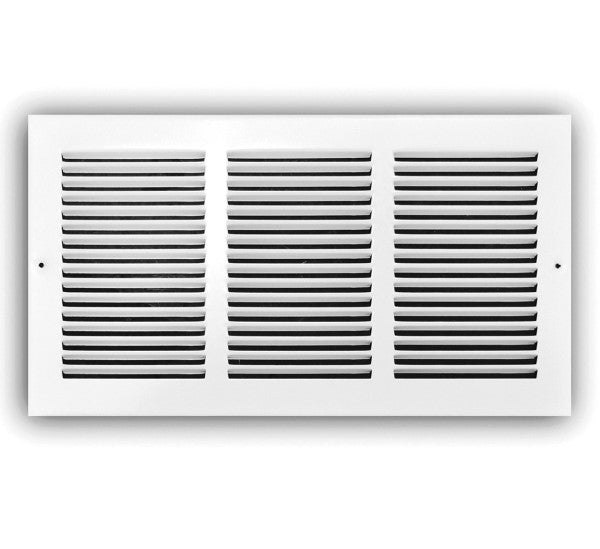

The TRUaire 17024X06 is a 1-way stamped face return air grille designed for effective air distribution in HVAC systems. This grille measures twenty-four inches wide by six inches high and has a thickness of one-quarter inch. With a flow rate ranging from one hundred thirty-four to three hundred thirteen cubic feet per minute, it is suitable for various ventilation applications.
- Durable white powder-coated finish
- Designed for sidewall or ceiling application
- 1/2 inch blade spacing for improved airflow
Product Highlights
Ideal for residential and commercial HVAC systems, providing efficient air return where needed.
Product Information
Standard Information
-
Brand: TRUaire
-
Type: 1-Way
Technical Specifications
-
Size: 24 in W x 6 in H x 1/4 in THK
-
Material: Steel
-
Finish: Powder Coated
-
Flow Rate: 134 to 313 cfm
-
Blade Spacing: 1/2 in
-
Effective Area: 61 sq-in
-
Overall Depth: 1/4 in
-
Weight: 2.1 lb
-
Package Height: 7.75 in
-
Package Length: 0.25 in
-
Package Width: 25.75 in
-
Deflection Angle: 55 deg
-
Country of Origin: VN
