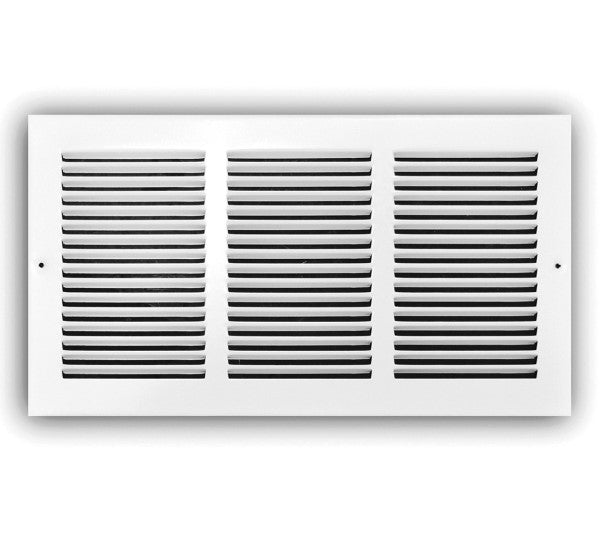

TRUaire 17020X06 TRUaire 1-Way Stamped Face Return Air Grille 20 in W x 6 in H

Product Description

TRUaire 17020X06 is a return air grille designed for effective air distribution. This product measures twenty inches in width and six inches in height. It is made of steel and features a powder coated finish, making it durable for various applications. The grille has a flow rate ranging from one hundred sixty-seven to three hundred eighty-eight cubic feet per minute. This product is suitable for installation in both sidewall and ceiling applications.

• Durable steel construction
• Flow rate of 167 to 388 cfm
• Ideal for sidewall or ceiling use

Product Highlights

The TRUaire 17020X06 grille is designed to blend durability and functionality, making it a valuable component in heating and air conditioning systems.

Product Information

Standard Information

• Brand: TRUaire
• Material: Steel

Technical Specifications

• Size: 20 in W x 6 in H x 1/4 in THK
• Type: 1-Way
• Finish: Powder Coated
• Flow Rate: 167 to 388 cfm
• Overall Depth: 1/4 in
• Deflection Angle: 55 deg
• Effective Area: 78 sq-in
• Blade Spacing: 1/2 in
• Country of Origin: VN
• Package Height: 7.75 in
• Package Width: 21.75 in
• Package Length: 0.25 in
• Package Weight: 1.8 lb
• Domestic/Import: Import
