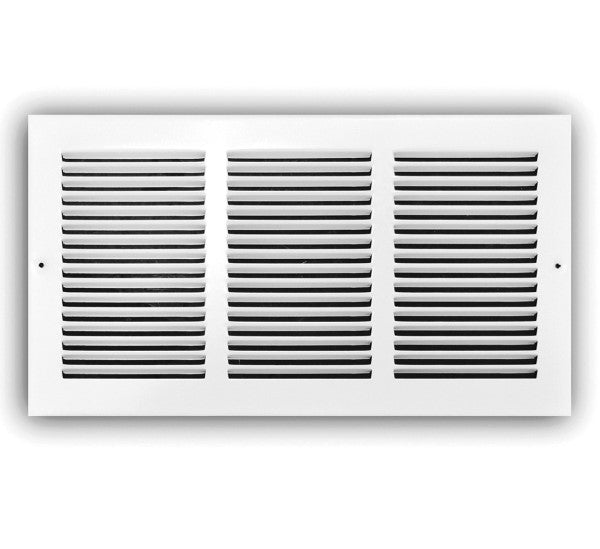

TruAire 17016X08 Stamped Face Return Air Grille 1-Way 16 In W x 8 In H

Product Description

The TruAire 17016X08 is a stamped face return air grille, designed for sidewall or ceiling applications. This product measures sixteen inches wide by eight inches high and has a thickness of one quarter inch. It delivers an airflow rate between one hundred seventy-eight to four hundred twelve cubic feet per minute. Made from durable steel with a white powder-coated finish, this grille is built to last.

• Durable steel construction
• Efficient airflow range
• Suitable for various installation locations

Product Highlights

This grille is effective for both sidewall and ceiling installation, providing essential airflow in HVAC systems.

Product Information

Standard Information

• Brand: TruAire
• MPN: 17016X08

Technical Specifications

• Size: 16 in W x 8 in H x 1/4 in THK
• Type: 1-Way
• Material: Steel
• Finish: Powder Coated
• Flow Rate: 178 to 412 cfm
• Blade Spacing: 1/2 in
• Deflection Angle: 55 deg
• Effective Area: 90 sq-in
• Overall Depth: 1/4 in
• Package Weight: 1.82 lb
• Country of Origin: VN
• Domestic/Import: Import
