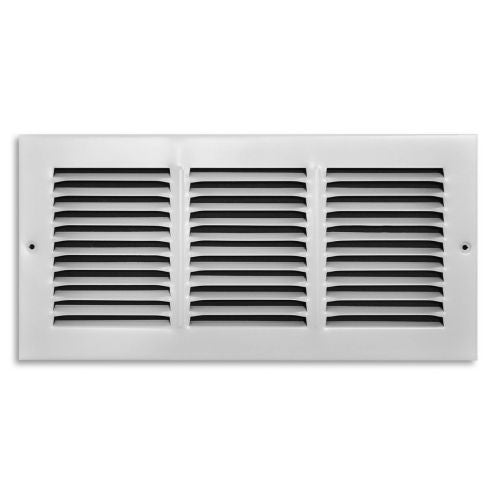

TRUaire 17014X6 1-Way Stamped Face Return Air Grille 14 in W x 6 in H 1/4 in THK

Product Description

The TRUaire 17014X6 is a one-way stamped face return air grille. It is designed for sidewall or ceiling applications, providing efficient air distribution in any HVAC system. This grille measures fourteen inches in width, six inches in height, and features a thickness of one-fourth inch.

• Durable white powder coated finish
• For sidewall or ceiling application
• Flow rate of one hundred eighteen to two hundred seventy-three cubic feet per minute

Product Highlights

This grille is suitable for use in residential and commercial applications. It helps enhance airflow and improve indoor air quality.

Product Information

Standard Information

• Brand: TRUaire
• Type: 1-Way

Technical Specifications

• Size: 14 in W x 6 in H x 1/4 in THK
• Flow Rate: 118 to 273 cfm
• Material: Steel
• Finish: Powder Coated
• Blade Spacing: 1/2 in
• Effective Area: 56 sq-in
• Deflection Angle: 55 deg
• Country of Origin: VN
• Series: 170
• Overall Depth: 1/4 in
