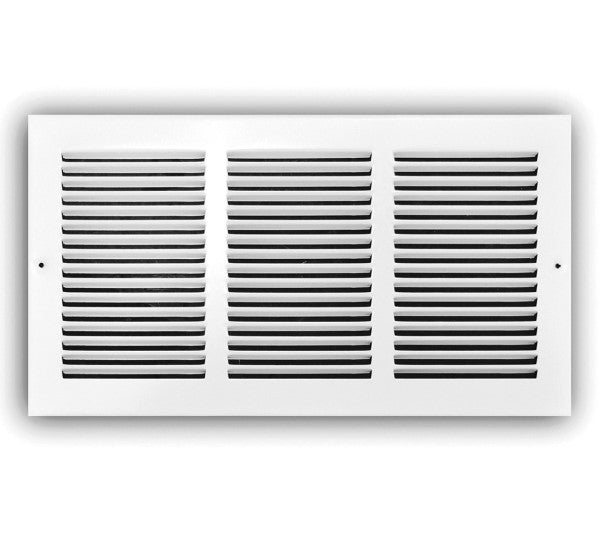

TRUaire 17010X10 1-Way Stamped Face Return Air Grille 10 in W x 10 in H x 1/4 in THK

Product Description

TRUaire 17010X10 is a one-way stamped face return air grille designed for HVAC applications. This grille measures ten inches in width by ten inches in height and is one quarter inch thick. It is made from steel and features a durable powder-coated finish. It is suitable for use in both sidewall and ceiling applications, ensuring effective air distribution in various environments.

• Durable white powder-coated finish
• For sidewall or ceiling application
• Flow rate ranges from 140 to 324 cubic feet per minute (cfm)

Product Highlights

This grille is designed to provide optimal airflow and is built with sturdy materials for long-term use. It features adjustable deflection angles to help direct airflow where needed.

Product Information

Standard Information

• Brand: TRUaire
• MPN: 17010X10

Technical Specifications

• Blade Spacing: 1/2 in
• Country of Origin: VN
• Deflection Angle: 55 deg
• Domestic/Import: Import
• Effective Area: 67 sq-in
• Finish: Powder Coated
• Flow Rate: 140 to 324 cfm
• Material: Steel
• Overall Depth: 1/4 in
• Package Height: 11.75 in
• Package Length: 0.25 in
• Package Weight: 1.2 lb
• Package Width: 11.75 in
• Series: 170
• Size: 10 in W x 10 in H x 1/4 in THK
• Type: 1-Way
