Product Description

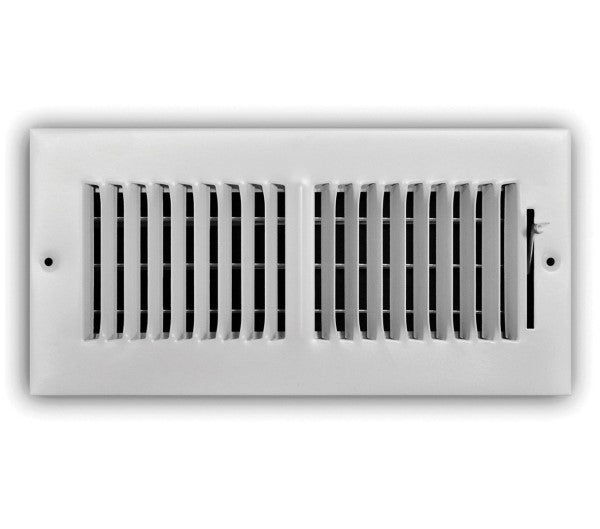

TRUaire 102M 12X04 is a two-way wall and ceiling register designed for efficient air distribution. It measures twelve inches by four inches and supports airflow from 40 to 140 cfm. Constructed from steel, this register features a multi-shutter damper for easy airflow control.
- Two-way airflow pattern for optimal distribution
- Durable powder-coated finish
- Effective for supply air applications
Product Highlights
The register is suitable for both sidewall and ceiling installations, making it versatile for different settings.
Product Information
Standard Information
-
Brand: TRUaire
-
MPN: 102M 12X04
Technical Specifications
-
Blade Spacing: 1/2 in
-
Country of Origin: VN
-
Deflection Angle: 45 deg
-
Domestic/Import: Import
-
Effective Area: 30 sq-in
-
Finish: Powder Coated
-
Flow Rate: 40 to 140 cfm
-
Material: Steel
-
Overall Depth: 1-7/16 in
-
Package Height: 5.75 in
-
Package Length: 1.5 in
-
Package Weight: 1.31 lb
-
Package Width: 13.75 in
-
Series: 102
-
Size: 12 x 4 in
-
Type: 2-Way
